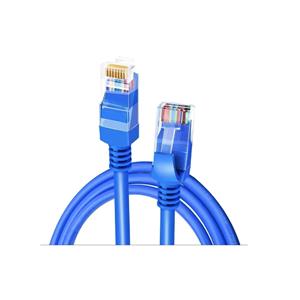

Small Office LAN Wiring CAT5e Cable For High-Speed 1000Mbps Transmission

In the field of network cabling, twisted pair cables, as the core carrier of data transmission, directly affect the stability and transmission efficiency of networks. CAT5E (Enhanced Category 5 Twisted Pair), as an upgraded standard after CAT5, remains the mainstream choice for small and medium-sized networks, enterprise local area networks (LANs), and home cabling due to its balanced performance and cost advantages. This article will comprehensively analyze the technical characteristics of CAT5E from aspects such as definition, core parameters, structural features, performance advantages, application scenarios, and installation specifications, helping readers gain an in-depth understanding of this classic cabling standard.

I. Definition and Evolution Background of CAT5E

1. Basic Definition

CAT5E (Category 5 Enhanced), or "Enhanced Category 5 Twisted Pair", is a cabling standard formulated by the Telecommunications Industry Association (TIA) and the Electronic Industries Alliance (EIA) (TIA/EIA-568-B.2-5). It belongs to a type of unshielded twisted pair (UTP). Its core design goal is to support higher bandwidth data transmission on the basis of improving anti-interference capabilities, meeting the needs of medium and high-speed networks such as Gigabit Ethernet.

2. Core Differences from CAT5

CAT5E is not a brand-new standard independent of CAT5 but an "enhanced version" of CAT5. The main difference between the two lies in the stringency of performance parameters:

CAT5: Released in 1995, it is designed with a bandwidth of 100MHz, mainly supporting 10BASE-T (10Mbps) and 100BASE-TX (100Mbps) Ethernet standards, with lower requirements for parameters such as crosstalk and attenuation.

CAT5E: Released in 2001, it also uses 100MHz as the reference frequency. However, through optimizing the twist pitch and improving material technology, it imposes stricter restrictions on parameters such as crosstalk (especially Near-End Crosstalk, NEXT) and return loss, thereby supporting the 1000BASE-T (Gigabit Ethernet) standard and achieving a data transmission rate of 1Gbps.

In short, CAT5E breaks through the performance bottleneck of CAT5 through "detailed optimization" and becomes the first twisted pair standard that can stably support Gigabit networks.

II. Core Technical Parameters of CAT5E

The performance of CAT5E is defined by a series of quantitative parameters, which directly determine its data transmission capability, anti-interference performance, and stability. The following is a detailed analysis of key parameters:

1. Transmission Frequency and Bandwidth

Transmission Frequency: The designed transmission frequency range of CAT5E is 1MHz to 100MHz, which is a core commonality with CAT5 (CAT5 also supports 100MHz). However, CAT5E has better performance at 100MHz.

Bandwidth: Bandwidth refers to the amount of data that can be transmitted per unit time, which is directly related to the transmission frequency. The effective bandwidth of CAT5E is 100MHz, which is sufficient to support the transmission requirements of Gigabit Ethernet (1Gbps) in full-duplex mode (the 1000BASE-T standard requires simultaneous transmission using four pairs of twisted pairs at 100MHz).

Note: The higher the frequency, the faster the signal attenuation, and the more difficult it is to resist interference. CAT5E ensures signal integrity at high frequencies of 100MHz through optimized structure.

2. Data Transmission Rate

Theoretical Rate: Within a transmission distance of 100 meters, CAT5E supports the 1000BASE-T (Gigabit Ethernet) standard, with a theoretical maximum data rate of 1Gbps (bidirectional full-duplex mode).

Actual Performance: Affected by the cabling environment (such as electromagnetic interference and connector quality), the actual rate is usually stable at 800-950Mbps, which is sufficient for high-definition video streaming, large file transmission, cloud computing terminals, and other needs.

Backward Compatibility: It supports low-speed standards such as 10BASE-T (10Mbps) and 100BASE-TX (100Mbps), adapting to old equipment.

3. Impedance Characteristics

Standard Impedance: The characteristic impedance of CAT5E is 100Ω ± 20Ω (within the frequency range of 1-100MHz).

Importance: Impedance matching is a core requirement for signal transmission. If the cable impedance does not match the impedance of the devices at both ends (such as switches and network cards), it will cause signal reflection, generate return loss, and reduce transmission efficiency. The impedance stability of CAT5E ensures compatibility with mainstream network devices.

4. Attenuation

Definition: Attenuation refers to the energy loss of a signal during transmission due to cable resistance, dielectric loss, etc., measured in decibels (dB), with smaller values being better.

Standard Requirements: According to the TIA/EIA-568-B.2 standard, the maximum attenuation value of CAT5E at different frequencies must meet:

1MHz: ≤2.5dB

10MHz: ≤8.2dB

50MHz: ≤18.5dB

100MHz: ≤24dB (100-meter link)

Influencing Factors: Attenuation is proportional to the cable length (longer length leads to greater attenuation), positively correlated with frequency (higher frequency signals attenuate faster), and affected by ambient temperature (as temperature rises, attenuation increases, with an increase of about 0.4% per 1°C rise).

5. Crosstalk

Crosstalk is the most critical anti-interference parameter of twisted pairs, referring to the signal coupling interference between adjacent wire pairs (the signal of one wire pair "leaks" to another wire pair). CAT5E ensures the signal independence of multiple wire pairs during parallel transmission by strictly limiting the crosstalk value.

(1) Near-End Crosstalk (NEXT)

Definition: At the signal transmitting end (near end), the interference of the transmitted signal of one wire pair on the received signal of an adjacent wire pair.

Standard Requirements: At a frequency of 100MHz, the minimum NEXT value of a 100-meter link is 45dB (the larger the value, the stronger the anti-interference ability).

Significance: NEXT is the most influential parameter in crosstalk, directly determining the feasibility of Gigabit Ethernet (which requires four pairs of full-duplex transmission). The NEXT value of CAT5E is about 3-5dB higher than that of CAT5, greatly reducing near-end interference.

(2) Far-End Crosstalk (FEXT)

Definition: At the signal receiving end (far end), the interference of the transmitted signal of one wire pair on the received signal of an adjacent wire pair.

Characteristics: FEXT is greatly affected by the transmission distance (the farther the distance, the weaker the interference). Therefore, in practical applications, more attention is paid to "Equal Level Far-End Crosstalk (ELFEXT)" — the net value of FEXT minus attenuation (ELFEXT = FEXT - Attenuation).

Standard Requirements: At a frequency of 100MHz, the minimum ELFEXT value is 17dB.

(3) Other Crosstalk Parameters

Attenuation-to-Crosstalk Ratio (ACR): The difference between NEXT and attenuation (ACR = NEXT - Attenuation), reflecting the ratio of signal strength to interference, which must be ≥10dB at 100MHz.

Power Sum Near-End Crosstalk (PSNEXT): The sum of NEXT from all other wire pairs to a certain wire pair when multiple wire pairs are transmitting simultaneously, with a minimum value of 42dB at 100MHz.

6. Return Loss (RL)

Definition: The ratio of the reflected signal energy to the incident energy due to impedance mismatch (in dB). The larger the value, the smaller the reflection.

Standard Requirements: At a frequency of 100MHz, the minimum RL value is 10dB.

Impact: Excessive return loss will cause signal superposition distortion, which may lead to data packet retransmission at high frequencies, reducing network efficiency. CAT5E ensures impedance consistency by precisely controlling the conductor diameter and insulation uniformity, thereby reducing return loss.

7. Delay and Delay Skew

Transmission Delay: The time for a signal to travel from the transmitting end to the receiving end. The maximum delay of a 100-meter link at 100MHz is 555ns (approximately 0.5 microseconds).

Delay Skew: The maximum difference in transmission delay between the four wire pairs. CAT5E requires ≤50ns.

Significance: Excessive delay skew will cause significant differences in the arrival time of signals from different wire pairs of the same data packet, resulting in errors in data recombination at the receiving end, especially affecting applications with high real-time requirements (such as VoIP and video conferences). The differential twist pitch design of CAT5E (different twist pitches for each wire pair) effectively controls delay skew.

8. Maximum Transmission Distance

Standard Distance: In accordance with the Ethernet physical layer specifications, the maximum transmission distance of CAT5E is 100 meters (total link length, including horizontal cabling, jumpers, and equipment connections).

Reason: Beyond 100 meters, attenuation and crosstalk will deteriorate sharply, making the signal unable to be decoded reliably. To extend the distance, devices such as switches and repeaters are needed for segmented transmission.

III. Structural Characteristics of CAT5E

The performance advantages of CAT5E are inseparable from its physical structure design. From conductors to shielding layers, every detail serves the core goal of "low loss and anti-interference".

1. Conductors and Insulation Layers

Conductor Material: The mainstream is pure copper (CCA) or high-purity oxygen-free copper (OFC), with a diameter of 0.51mm (24AWG) or 0.4mm (26AWG).

Pure copper: Good conductivity (resistance ≤9.38Ω/100 meters), low signal attenuation, suitable for long-distance transmission.

Copper-clad aluminum (CCA): Low cost, but with higher resistance (about 20Ω/100 meters) and greater attenuation, only suitable for short-distance transmission.

Insulation Layer: Each conductor is wrapped with a polyethylene (PE) or polyvinyl chloride (PVC) insulation layer, with a uniform thickness (about 0.2mm) to ensure impedance stability. The insulation layers are color-coded by wire pairs (four pairs: blue, orange, green, brown, each pair containing one solid color wire and one white color-matched wire).

2. Twist Pitch Design

Core Principle: The twisting of wire pairs can counteract electromagnetic interference — the currents in the two wires are in opposite directions, and the generated electromagnetic fields cancel each other out, while reducing the intrusion of external magnetic fields.

Optimization of CAT5E:

The twist pitches of the four wire pairs are different (usually in the range of 10-30mm), avoiding "resonance interference" between wire pairs (the same twist pitch will aggravate crosstalk).

The twisting density is higher than that of CAT5 (more tightly twisted), and the anti-crosstalk ability at 100MHz is improved by about 20%.

3. Shielding Types

CAT5E can be divided into three types according to the shielding structure, adapting to different electromagnetic environments:

Type Structural Characteristics Anti-Interference Ability Cost Application Scenarios

UTP (Unshielded Twisted Pair) No shielding layer, only outer sheath General (relies on twist pitch to counteract interference) Low Home, office, and other low-interference environments

FTP (Foil Twisted Pair) A layer of aluminum foil wrapped outside the four wire pairs Strong (blocks high-frequency electromagnetic interference) Medium Shopping malls, hospitals, and other medium-interference environments

STP (Shielded Twisted Pair) Double shielding of aluminum foil + metal mesh Extremely strong (resists low-frequency and high-frequency interference) High Industrial workshops, substations, and other high-interference environments

Note: Shielded CAT5E must be used with shielded crystal heads and grounded; otherwise, new interference may be introduced due to "shield layer potential difference".

4. Sheath and Flame Retardant Grade

Sheath Material: The outer sheath is usually PVC (polyvinyl chloride) or LSZH (low smoke zero halogen).

PVC: Low cost, high mechanical strength, but releases toxic gases when burned, suitable for non-crowded places.

LSZH: Less smoke and non-toxic when burned, meets fire safety standards, suitable for crowded areas such as subways and office buildings.

Flame Retardant Grade:

CM: General type, vertical burning does not spread, suitable for horizontal cabling in buildings.

CMR (riser): For vertical shaft cabling, with stronger flame resistance.

CMP (plenum): For ventilation duct cabling, with flame retardancy + low smoke, the most stringent requirements.

IV. Performance Advantages and Limitations of CAT5E

1. Core Advantages

(1) Outstanding Cost-Effectiveness

It meets the requirements of Gigabit Ethernet, while the cost is only 60%-70% of that of CAT6, making it the "economic choice" for small and medium-sized networks.

Compared with CAT5, it only increases the cost by about 10%, but achieves a leap from 100Mbps to 1Gbps.

(2) Strong Compatibility

It supports all twisted pair-based network standards (10/100/1000BASE-T), and can directly replace CAT5 cabling without replacing device interfaces.

It is fully compatible with 1000BASE-T ports of mainstream network devices (switches, network cards, routers).

(3) Convenient Construction

Unshielded UTP is lightweight (about 5-8kg/305 meters) and has a small bending radius (≥12.5mm static, ≥25mm dynamic), suitable for complex cabling such as ceiling and wall embedding.

The connector production is simple (using RJ45 crystal heads), which can be operated by ordinary electricians, with low maintenance costs.

(4) Wide Application Range

The bandwidth and rate are sufficient to support mainstream applications such as high-definition video (4K requires about 25Mbps), video conferences (about 4Mbps per channel), and cloud computing terminals (about 10-50Mbps per user).

2. Limitations

Bandwidth Limit: The 100MHz bandwidth cannot support 10 Gigabit Ethernet (10GBASE-T requires a bandwidth of more than 500MHz, which requires CAT6A and above standards).

Insufficient High-Frequency Performance: Beyond 100MHz, attenuation and crosstalk deteriorate sharply, unable to meet high-frequency scenarios such as 5G base station backhaul and data centers.

Anti-Interference Depends on Environment: UTP performance degrades significantly in strong electromagnetic environments (such as near motors and transformers), requiring additional costs to upgrade to shielded types.

V. Application Scenarios and Selection Suggestions

1. Typical Application Scenarios

Home Networks: Supports simultaneous connection of multiple devices (mobile phones, computers, smart home devices), meeting the needs of 4K streaming, online games, etc.

Small and Medium Enterprise LANs: Covers office areas and meeting rooms, supporting OA systems, file sharing, IP telephony, and other services.

Security Monitoring: Transmits video signals from high-definition cameras (2 million pixels require about 4Mbps), and a single cable can carry 4-8 cameras.

Education and Hotels: Network cabling in classrooms and guest rooms, balancing cost and performance.

2. Selection Notes

Prioritize Pure Copper UTP: For home and office cabling, 24AWG pure copper UTP is preferred, with the highest cost-effectiveness; copper-clad aluminum can be considered for short-distance temporary cabling.

Choose FTP/STP for High-Interference Environments: In industrial workshops, hospital MRI rooms, and other scenarios, shielded CAT5E + grounding treatment is required.

Pay Attention to Certification: Select brands certified by TIA/EIA or ISO (such as AMP, CommScope, Putian), and avoid "non-standard products" (with false parameter labels, actual performance only reaching CAT5 level).

Reserve Upgrade Space: If 10 Gigabit networks may be deployed in the future, it is recommended to choose CAT6 directly; if only Gigabit is needed, CAT5E is sufficient.

VI. Installation and Maintenance Specifications

Even high-quality CAT5E may experience performance degradation due to improper installation. The following are key installation points:

1. Cabling Taboos

Avoid Excessive Stretching: The pulling force should not exceed 100N (about 10kg), otherwise, it will cause conductor deformation and impedance abnormalities.

Control Bending Radius: The bending radius should not be less than 4 times the sheath diameter (static) or 8 times (dynamic). Excessive bending will damage the twist pitch and increase crosstalk.

Keep Away from Strong Electricity: The parallel distance with 220V strong electric lines should be ≥30cm, and keep a 90° vertical angle when crossing to avoid electromagnetic coupling interference.

Prohibit Over-Tight Bundling: The diameter of the cable bundle should not exceed 5cm, and the bundling spacing should be ≥50cm to prevent cable deformation under pressure.

2. Connector Production

Use dedicated RJ45 crystal heads (unshielded heads for UTP, shielded heads for FTP). When stripping the cable, avoid damaging the insulation layer (stripping length is about 1.5cm).

Arrange the wire pairs in the order of "white-orange - orange - white-green - blue - white-blue - green - white-brown - brown", cut them neatly, insert them into the crystal head (the conductor reaches the head), and press firmly with a crimping tool (ensure the metal sheet pierces the insulation layer).

3. Testing and Acceptance

Use a network tester (such as Fluke DSX-5000) to test key parameters: attenuation, NEXT, RL, delay, etc., ensuring all meet the standards at 100MHz.

The test link must include the "permanent link" (horizontal cabling + modules at both ends) and the "channel" (permanent link + jumpers), both of which must comply with the standards.

VII. Conclusion

As the "cost-effective king" of Gigabit Ethernet, CAT5E occupies an important position in the field of network cabling with its 100MHz bandwidth, 1Gbps rate, and excellent anti-crosstalk ability. It not only solves the problem that CAT5 cannot support Gigabit but also has more cost advantages than CAT6, making it an ideal choice for small and medium-sized networks.

Although higher standards such as CAT6 and CAT6A have gradually become popular, in scenarios where Gigabit is the main demand, the "performance-cost" balance of CAT5E is still irreplaceable. As long as the selection is compliant and the installation is standardized, CAT5E can fully meet the network needs of homes and enterprises in the next 5-10 years, and is a model of technical maturity and practicality.
