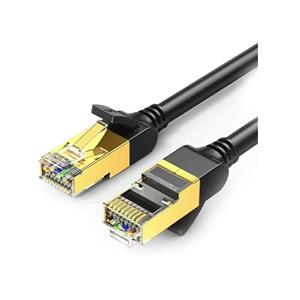

CAT7 Ethernet Cable For High-Speed Industrial Scenarios With 600MHz Bandwidth
In the evolution of twisted-pair cabling standards, CAT7 (Category 7 cable) is a high-end solution designed for high-frequency, high-bandwidth scenarios. Compared with CAT6A, CAT7 achieves stable transmission of ultra-high-frequency signals through stricter parameter design and structural optimization, becoming a core cabling technology supporting next-generation high-speed networks. The following comprehensively analyzes the parameter characteristics of CAT7 from the dimensions of transmission performance, structural innovation, electrical parameters, and environmental adaptability.
I. Transmission Performance: Breaking Through High-Frequency Bottlenecks to Support Ultra-High Speeds
The core parameter advantage of CAT7 lies in its ability to handle "ultra-high-frequency signals," and its transmission performance directly aligns with the bandwidth requirements of future networks.
Bandwidth
Bandwidth is the most significant parameter upgrade of CAT7: According to the ISO/IEC 11801 standard, CAT7 is defined into two grades—Class F and Class FA—
Class F: The rated bandwidth is 600MHz, capable of stably transmitting signals with frequencies up to 600MHz;
Class FA: The rated bandwidth is increased to 1000MHz (1GHz), making it the twisted-pair cable with the highest bandwidth currently available.
This parameter means that CAT7 can carry more high-frequency signals than CAT6A (500MHz), providing a "channel foundation" for ultra-high-speed transmission. For example, 100Gbps Ethernet requires multi-pair parallel modulation at 1000MHz bandwidth, and the 1000MHz bandwidth of Class FA precisely meets this demand.
Data Rate
Within the standard transmission distance, the speed performance of CAT7 far exceeds that of CAT6A:
Over a 100-meter distance, Class F can stably support 10Gbps (10 Gigabit Ethernet), which is the same as CAT6A, but with better stability at high frequencies;
Within a 30-meter distance, Class FA can support 40Gbps (40 Gigabit Ethernet);
Within a 15-meter distance, Class FA can even support 100Gbps (100 Gigabit Ethernet).
This parameter difference makes CAT7 a "benchmark" for short-distance ultra-high-speed transmission—for example, the connection between servers and top switches in data centers (usually less than 15 meters) can directly achieve 100Gbps interconnection through CAT7 without relying on optical fibers, significantly reducing cabling costs.
Dynamic Balance Between Speed and Distance
Like all twisted-pair cables, the speed of CAT7 decreases with increasing distance, but the attenuation curve is flatter:
10Gbps speed: No attenuation within 100 meters (both Class F and Class FA meet this);
40Gbps speed: Class FA has no attenuation within 30 meters, and the speed gradually drops to 25Gbps beyond 30 meters;
100Gbps speed: Only effective within 15 meters, suitable for short-distance connections "from device to device" inside cabinets.
This parameter characteristic of "ultra-high speed at short distances and stability at long distances" allows CAT7 to meet both the high-density interconnection needs of core computer rooms and the long-distance cabling requirements of ordinary office areas.
II. Structural Design: Double Shielding + Independent Pairs, Creating an "Anti-Interference Fortress"
The physical structure of CAT7 is the "hardware foundation" for its high-frequency performance. Through multiple shielding and precision twisting designs, the impact of interference signals is minimized.
Shielding Design: "Dual Protection" of S/FTP
To cope with electromagnetic interference (EMI) and radio frequency interference (RFI) at 1000MHz high frequency, CAT7 mandatorily adopts an S/FTP (Screened/Foil Twisted Pair) structure, i.e., a dual shielding design of "individual pair shielding + overall shielding":
Pair shielding: Each pair of wires is wrapped with an aluminum foil shielding layer (coverage rate ≥98%), and the aluminum foil thickness reaches 0.05mm (thicker than CAT6A's 0.02-0.05mm), which can block crosstalk between pairs;
Overall shielding: The four shielded pairs are wrapped with a layer of metal braid (made of tinned copper, braiding density ≥90%) to form an "outer layer protection" against interference from the external environment (such as electromagnetic radiation from industrial equipment).
Compared with CAT6A's STP (overall shielding) or FTP (single-layer shielding), the dual shielding of S/FTP improves the anti-interference ability of CAT7 by more than 40%. For example, in strong interference environments such as industrial workshops, CAT6A may experience packet loss due to high-frequency signal interference, while CAT7 can maintain zero packet loss transmission at 10Gbps speed.
Pair Twisting: Precisely Controlled "Anti-Crosstalk Code"
Crosstalk at high frequencies is the main obstacle to signal transmission. CAT7 further reduces crosstalk by optimizing twisting parameters:
Twist Pitch: The twist pitches of the four pairs are "asymmetrically designed," which are 8-10mm (blue pair), 10-12mm (orange pair), 12-14mm (green pair), and 14-16mm (brown pair) respectively. Moreover, the twist pitch difference between any two pairs is ≥2mm to avoid "synchronous resonance interference";
Twisting Density: The number of twists per meter reaches 30-40 times (CAT6A is 20-30 times). High-density twisting can enhance the "anti-leakage ability" of signals and reduce signal coupling between pairs.
Conductors and Insulation Layers: "Low-Loss Carriers" for High-Frequency Signals
Conductor material: Uses "high-purity oxygen-free copper wire" with a purity of ≥99.995% (higher than CAT6A's 99.99%), and the conductor diameter is 0.58mm (AWG 23), slightly thicker than CAT6A's 0.57mm, reducing DC resistance (≤8.5Ω/100 meters, better than CAT6A's 9.38Ω);
Insulation layer: Uses "foamed polyethylene (Foamed PE)" with a dielectric constant ≤1.5 (CAT6A is 1.6-1.8), and the dielectric loss (tanδ) at high frequencies is ≤0.0015, which can reduce energy loss of signals in the insulation layer.
III. Electrical Parameters: Strict Limits to Ensure Signal Stability
The electrical parameters of CAT7 are strictly defined by the ISO/IEC 11801:2017 standard, and their limits are much stricter than those of CAT6A, especially showing significant performance advantages in high-frequency bands.
Attenuation
Attenuation is the energy loss of signals during transmission. The attenuation limit of CAT7 is strictly controlled with the increase of frequency (100 meters is the standard test distance):
At 100MHz, the attenuation ≤19.0dB (better than CAT6A's 21.6dB);
At 500MHz, the attenuation ≤35.0dB (CAT6A is 43.6dB);
At 600MHz (Class F), the attenuation ≤38.0dB;
At 1000MHz (Class FA), the attenuation ≤48.0dB.
This parameter means that at 1000MHz high frequency, the signal loss of CAT7 is lower than that of CAT6A (43.6dB at 500MHz), making long-distance high-frequency transmission possible.
Crosstalk Parameters: Almost "Zero Interference" Control
Crosstalk is the "core assessment item" of CAT7 electrical parameters, and its limits are much higher than those of CAT6A:
Near-End Crosstalk (NEXT):
At 600MHz, the NEXT limit of Class F is ≥30.0dB (CAT6A is 23.3dB at 500MHz);
At 1000MHz, the NEXT limit of Class FA is ≥24.0dB, still better than the high-frequency performance of CAT6A.
Far-End Crosstalk (ELFEXT):
At 600MHz, the ELFEXT limit of Class F is ≥20.0dB;
At 1000MHz, the ELFEXT limit of Class FA is ≥15.0dB, ensuring the stability of far-end signals.
Power Sum NEXT/PSELFEXT:
At 600MHz, the PSNEXT of Class F is ≥27.0dB, and PSELFEXT is ≥17.0dB;
At 1000MHz, the PSNEXT of Class FA is ≥21.0dB, and PSELFEXT is ≥12.0dB.
These parameters mean that when multiple pairs transmit simultaneously, the crosstalk interference of CAT7 is negligible—for example, in a 40Gbps link in a data center, the mutual interference when four pairs transmit in parallel is only 1/5 of that of CAT6A, ensuring data synchronization.
Return Loss (RL)
Return loss measures the degree of signal reflection, and the limit of CAT7 is stricter:
At 100MHz, RL ≥18dB (CAT6A is 12dB);
At 600MHz, the RL of Class F is ≥12dB;
At 1000MHz, the RL of Class FA is ≥10dB.
This parameter benefits from the "impedance consistency design" of CAT7: the characteristic impedance of conductors, insulation layers, and connectors is strictly controlled at 100Ω±10Ω (CAT6A is ±15Ω), reducing signal reflection caused by impedance .
Delay and Delay Skew
Delay: Within a 100-meter distance, the maximum delay at 1000MHz is ≤500ns (CAT6A is 548ns), and signal transmission is faster;
Delay skew: The delay difference between different pairs is ≤20ns (CAT6A is 50ns), ensuring "zero misalignment" of signals from four pairs in 40Gbps/100Gbps Ethernet.
IV. Structural Design: Full-Link Optimization from Connectors to Sheaths
The performance advantages of CAT7 not only depend on the cable itself but also stem from the collaborative design of the "full-link structure."
Connectors: Dedicated Interfaces to Match High-Frequency Performance
CAT7 is not compatible with traditional RJ45 connectors (because the structure of RJ45 will cause high-frequency signal leakage), but instead uses two dedicated connectors: GG45 or TERA:
GG45: Adds 4 contact points on the basis of RJ45 (a total of 12 contacts), the shielding layer is directly connected to the cable shielding braid, and the impedance matching error is ≤5Ω;
TERA: Adopts an "asymmetric design" with a larger contact spacing (1.27mm), reducing crosstalk between contacts for high-frequency signals, and the insertion loss is ≤0.5dB (at 1000MHz).
The shielding layer coverage rate of these connectors is ≥99%, and they support "360° full shielding connection" to ensure no signal leakage at the joints.
Sheath and Cable Diameter
Affected by the dual shielding and thick insulation layer, the cable diameter of CAT7 increases significantly:
The diameter is usually 8-10mm (Class FA is thicker, about 9-11mm), 30% thicker than CAT6A (6.5-8mm);
The sheath material is "low smoke zero halogen (LSZH)" or "flame-retardant polyolefin" with an oxygen index ≥35 (CAT6A is 32), and the temperature resistance range is -40℃~90℃ (industrial grade can reach -50℃~105℃), suitable for high-temperature or low-temperature environments.
It should be noted during wiring: CAT7 has higher requirements for bending radius—static bending ≥16 times the cable diameter (about 128-176mm), dynamic bending ≥24 times the cable diameter (about 192-264mm) to avoid shielding layer breakage.
V. Environmental Adaptability: Reliability in Extreme Scenarios
The parameter design of CAT7 fully considers the challenges of complex environments, and its physical performance indicators far exceed those of ordinary twisted-pair cables.
Electromagnetic Interference Resistance (EMI/RFI)
The dual shielding layer enables CAT7's anti-interference ability to reach the "industrial grade":
The shielding effectiveness against electromagnetic radiation below 1000MHz is ≥85dB (CAT6A is 60dB), which can resist strong interference sources such as substations and motors;
The attenuation rate of radio frequency interference (such as mobile phone signals, radar waves) is ≥99.9%, ensuring signal purity in sensitive scenarios such as medical equipment and aviation communications.
Mechanical Strength and Durability
Tensile strength: Short-term (during installation) ≤150N, long-term (after fixing) ≤30N (CAT6A is 100N/20N), and the conductors are not easy to break;
Wear resistance: The sheath has no damage after 1000 friction tests (load 5N), suitable for scenarios with frequent movement (such as stage wiring);
Corrosion resistance: The metal shielding layer is made of "nickel-plated copper" with salt spray resistance ≥96 hours (ASTM B117 standard), which can be used in humid and corrosive environments such as seaside or chemical plants.
Fire Resistance and Environmental Protection
Flame retardant grade: Meets the "vertical burning test" of IEC 60332-3-24 standard, the flame spread speed during combustion is ≤10cm/min, and there are no drips;
Environmental protection: The content of heavy metals such as lead and cadmium is ≤10ppm (EU RoHS 2.0 standard), suitable for scenarios with high environmental protection requirements such as hospitals and schools.
VI. Compatibility and Application Scenarios: Positioned as High-End, Focusing on the Future
The parameter characteristics of CAT7 determine its "high-end" application scenarios, while taking into account limited compatibility.
Compatibility Limitations
The dedicated connectors (GG45/TERA) of CAT7 are not directly compatible with RJ45 and need to be through "adapter converters", but this will lead to performance degradation:
If connected to CAT6A equipment through an adapter, the overall link performance will be reduced to the CAT6A level (500MHz/10Gbps);
It is not recommended to mix CAT7 with lower-category cables, otherwise, return loss will increase due to impedance mismatch.
Typical Application Scenarios
Based on the parameter advantages of 1000MHz bandwidth and 100Gbps short-distance speed, CAT7 is mainly used in:
Supercomputing centers/large data centers: Supporting 100Gbps interconnection between servers and switches (within 15 meters), meeting the real-time data transmission needs of AI training and quantum computing;
Industrial automation: Connecting PLCs (programmable logic controllers) and sensors in factory workshops, and the anti-interference ability ensures real-time control of the production line (delay ≤1ms);
High-end medical equipment: Such as internal wiring of MRI (nuclear magnetic resonance) and CT machines, avoiding electromagnetic interference affecting equipment accuracy;
Broadcasting and television studios: Transmitting 4K/8K live signals (a single 8K video is about 100Mbps), and multiple pairs can transmit multiple signals synchronously in parallel.
VII. Parameter Comparison with CAT6A: Why Choose CAT7?
A comparison of core parameters can more clearly reflect the advantages of CAT7:
Parameter CAT6A (Class E) CAT7 (Class FA)
Bandwidth 500MHz 1000MHz
Speed at 100 meters 10Gbps 10Gbps
Maximum short-distance speed 10Gbps (attenuation beyond 55m) 100Gbps (within 15m)
Anti-interference shielding STP/FTP (single/dual shielding) S/FTP (pair + overall shielding)
Attenuation at 1000MHz (100m) Undefined (beyond specification) ≤48.0dB
Delay skew ≤50ns ≤20ns
It can be seen that the parameter upgrade of CAT7 is mainly aimed at "high-frequency, ultra-high-speed, strong interference" scenarios, while CAT6A is more suitable for ordinary 10Gbps needs—users should choose according to actual bandwidth and environment to avoid over-investment.
Summary
Through the parameter breakthroughs of 1000MHz bandwidth and 100Gbps short-distance speed, as well as the structural optimization of S/FTP dual shielding and dedicated connectors, CAT7 has become the "performance ceiling" among twisted-pair cables. Its strict control of electrical
