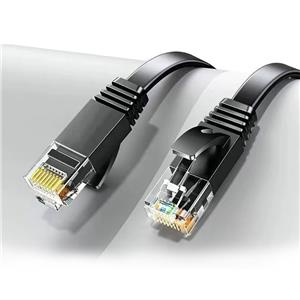

Home And Enterprise Upgrade CAT6 Ethernet Cable For 10Gbps Transmission
CAT6 network cable, as a Category 6 unshielded twisted pair, is an important cable widely used in Ethernet cabling. Its parameter characteristics cover multiple dimensions such as physical structure, electrical performance, and transmission performance. These characteristics collectively determine its stable performance in high-speed network environments.
In terms of physical structure, the conductor of CAT6 network cable usually adopts 23AWG solid bare copper, with a wire diameter of approximately 0.57±0.005mm. Some Category 6 shielded twisted pairs with multi-strand stranded design use 23AWG oxygen-free copper wires, with a DC resistance of ≤21Ω/km. The selection of this conductor material and specification can effectively reduce energy loss during signal transmission and provide a good foundation for high-speed transmission. The insulation layer is generally made of polyethylene-based polymer materials, with an insulated wire diameter of about 0.98mm±0.02mm. The excellent electrical insulation performance can prevent signal leakage and crosstalk, ensuring the purity of the signal.
One of the most prominent physical features of CAT6 network cable is the central cross skeleton. This structure places the four pairs of twisted pairs in four grooves respectively, and the skeleton rotates with the change of length, which can always maintain the relative position of the four pairs of twisted pairs, greatly improving the balance characteristics and crosstalk attenuation of the cable. Even during installation, it can reduce the risk of damage to the balanced structure. The outer sheath is mostly made of flame-retardant polymer materials, commonly PVC, with a thickness of about 0.56mm. The finished wire diameter is generally 6.0mm±0.2mm, mostly gray. Some also use low-smoke halogen-free (LSZH) sheaths to meet safety and environmental protection requirements. The four pairs of twisted pairs have fixed color combinations: orange-white/orange, green-white/green, blue-white/blue, and brown-white/brown. Each pair of twisted pairs has different twist pitches. Through the combination of different twist pitches, the interference between pairs is further reduced, making signal transmission more stable.
In terms of electrical performance parameters, the transmission frequency of CAT6 network cable covers 1MHz-250MHz, with a bandwidth of up to 250MHz, which is twice that of Category 5e network cables, providing sufficient space for high-bandwidth applications. Theoretically, it supports a maximum transmission rate of 10Gbps. In practical applications, it can stably maintain 10Gbps within 55 meters and stably support 1Gbps within 100 meters, fully adapting to high-speed network scenarios such as Gigabit Ethernet. The characteristic impedance remains 100Ω±15% in the frequency range of 1MHz-250MHz, which accurately adapts to the RJ45 interface standard, ensuring impedance matching for signal transmission and reducing signal reflection.
Near-end crosstalk (NEXT) is a key indicator to measure the ability to suppress interference between adjacent pairs. It needs to be ≥44.3dB at 250MHz. The higher the value, the stronger the anti-interference ability, which can effectively avoid signal interference between adjacent pairs. Equivalent far-end crosstalk (ELFEXT) reflects the anti-interference ability of far-end signals, which is crucial for long-distance transmission. It needs to be ≥23.2dB at 250MHz to ensure stable reception of far-end signals. Return loss (RL) is used to measure the ability to suppress signal reflection. It needs to be ≥18dB at 250MHz, which can avoid signal distortion and bit errors caused by reflection, ensuring the integrity of signal transmission.
The delay skew is ≤45ns/100m. This parameter is crucial for the synchronization of multi-pair transmission, which can effectively reduce the risk of packet out-of-order and ensure the stability of network transmission, especially in scenarios with high real-time requirements such as video conferences and online games. In terms of DC resistance, the maximum DC resistance of solid bare copper conductors is generally 6.65ohms/km, while that of multi-strand stranded oxygen-free copper conductors is ≤21Ω/km. A smaller DC resistance means less energy loss during signal transmission, which can support signal transmission over longer distances.
In terms of transmission performance characteristics, the high-speed stability of CAT6 network cable is outstanding. With a bandwidth of 250MHz and a maximum transmission rate of 10Gbps, it can easily cope with high-bandwidth and high-speed network application scenarios such as high-definition video transmission, large file downloads, and large data exchange in data centers. Even in high-traffic network conditions, it can maintain stable and efficient transmission, avoiding problems such as freezing and delay.
Strong anti-interference ability is another major advantage of CAT6 network cable. In addition to the fact that the twisted structure of the twisted pair itself can reduce electromagnetic interference by offsetting electromagnetic induction, the cross skeleton structure further fixes the position of the pairs, reducing crosstalk between pairs. Some shielded CAT6 network cables also add shielding layers such as aluminum foil wrapping and tinned copper wire braiding, which can more effectively resist external electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable signal transmission in complex electromagnetic environments such as industrial workshops and hospitals.
In terms of transmission distance, in the low-speed network of 10/100/1000BASE-T system, the maximum length is 100 meters, of which about 90% is used for data transmission between systems, and the remaining 10% is used for the connection itself. In the 10GBASE-T high-speed network, the maximum cable length is 55 meters under ideal crosstalk conditions. Although the transmission distance is shortened at high speed, it can still meet the needs of most conventional scenarios, such as home wiring and small enterprise offices.
Good compatibility is also a major feature of CAT6 network cable. It is backward compatible with older Ethernet standards, such as CAT5 and CAT5e, and can be used with old equipment and cables, which greatly facilitates network upgrades. Users do not need to replace all original network equipment and wiring. They only need to use CAT6 network cables in the parts that need performance improvement to achieve improved network performance, reducing upgrade costs, which is very practical for families and small and medium-sized enterprises with limited budgets.
The wide range of application scenarios further reflects the advantages of CAT6 network cable. In home networks, it can connect various devices such as TVs, game consoles, smartphones, and computers, meeting the needs of home users for high-definition video viewing, online games, and smart home device networking, providing stable high-speed network support for home entertainment and life. In small enterprise offices, CAT6 network cables can meet network needs such as file sharing, video conferences, and cloud collaboration, improving office efficiency and ensuring the smooth development of enterprise business. In data centers, it can connect servers, storage devices, and switches, providing fast data communication and supporting the efficient operation of data centers.
The convenience of construction is also the reason why CAT6 network cable is widely used. Adopting the traditional round cable design, the outer diameter of unshielded CAT6 network cable is about 6.3mm, which is thinner than higher-grade or shielded network cables, facilitating pipe threading and wiring, and saving investment in wire pipes and trunking. During the construction process, it is not easy to have problems such as excessive bending, which reduces the construction difficulty, improves construction efficiency, and shortens the project cycle.
Compared with other types of network cables, the characteristics of CAT6 network cable are more prominent. Compared with CAT5 and CAT5e, CAT5 network cable has a bandwidth of only 100MHz, a maximum transmission rate of 100Mbps, and no cross skeleton structure; although CAT5e network cable supports 1Gbps transmission rate and its bandwidth is increased to 100MHz, it is still inferior to CAT6 in terms of anti-crosstalk and signal transmission stability. The performance advantage of CAT6 in high-speed and high-traffic network environments is more obvious.
Compared with CAT6A, as an upgraded version of CAT6, CAT6A has a transmission frequency of up to 500MHz, which is twice that of CAT6. It can support 10Gbps transmission rate within 100 meters, and has stronger anti-interference ability, with a more powerful shielding structure. However, CAT6A has a higher cost, a thicker wire diameter, and relatively greater construction difficulty. While meeting most conventional network needs, CAT6 has a better cost performance, making it more suitable for users with limited budgets and moderate network performance requirements.
Compared with CAT7, CAT7 network cable belongs to Category 7 network cable, with higher bandwidth up to 600MHz, faster transmission rate, which can stably support 10Gbps transmission rate within 100 meters, and excellent shielding performance, which can effectively resist strong external interference. However, CAT7 network cables are expensive and mainly used in professional places with extremely high requirements for network performance and anti-interference, while CAT6 focuses more on meeting the general high-speed network needs of the public.
In addition, CAT6 network cable also has certain guarantees in terms of environmental protection and safety. Some CAT6 network cables with low-smoke halogen-free (LSZH) sheaths produce less smoke and low toxicity when burned, which can reduce harm to personnel and equipment in case of fire, meeting the wiring needs of places with high safety and environmental protection requirements, such as hospitals, schools, and shopping malls.
In the long-term use process, the durability of CAT6 network cable is also worthy of recognition. The flame-retardant polymer material used in the outer sheath has good wear resistance and aging resistance, and can withstand certain physical impacts and environmental changes, such as temperature fluctuations and humidity changes, ensuring that the network cable maintains stable performance during long-term use, prolonging its service life and reducing replacement costs.
To sum up, with its unique physical structure, excellent electrical performance, stable transmission performance, wide compatibility, convenient construction, and high cost performance, CAT6 network cable occupies an important position in current network cabling. It can well meet the high-speed network transmission needs of various scenarios such as families, enterprises, and data centers, and is a very practical and economical network cable choice. With the continuous development of network technology, the demand for network bandwidth and speed is increasing, and CAT6 network cable will still play an important role in future network cabling.
