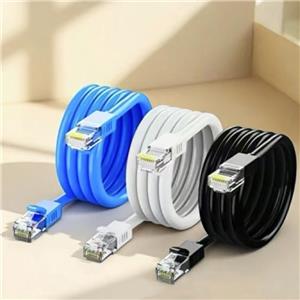

High-Speed CAT6a Cable With 500MHz Frequency For Long-Distance 10G Data Center Networks
In the field of network cabling, the performance of twisted-pair cables directly determines the stability and efficiency of data transmission. As an upgraded standard following CAT6, CAT6A (Augmented Category 6 twisted-pair cable) has become a core cabling solution for supporting high-speed networks with its superior parameter design. The following details the parameter characteristics of CAT6A from the dimensions of transmission performance, structural design, electrical parameters, and environmental adaptability.
I. Transmission Performance: Core Advantages of High Bandwidth and High Speed
The core value of CAT6A lies in its ability to carry "high-frequency signals," and its transmission performance parameters directly determine its applicability in high-density, high-bandwidth networks.
Bandwidth
Bandwidth is a key indicator of a cable's ability to transmit high-frequency signals, measured in megahertz (MHz). CAT6A has a rated bandwidth of 500MHz, twice that of CAT6 (250MHz). This parameter means that CAT6A can stably transmit signals with frequencies up to 500MHz—high-frequency signals can carry more data, laying the foundation for high-speed transmission. For example, 10Gbps Ethernet requires signal modulation at 500MHz bandwidth, and CAT6A's 500MHz bandwidth precisely meets this requirement, with a certain amount of redundancy to cope with future higher-frequency signal transmission needs.
Data Rate
Data rate refers to the amount of data transmitted per unit time, measured in bits per second (bps). Within the standard cabling distance of 100 meters, CAT6A can stably support 10Gbps (10 Gigabit Ethernet) transmission without rate attenuation. In contrast, although CAT6 can support 10Gbps, it is only effective within 55 meters; beyond this distance, the rate will decrease due to attenuation of high-frequency signals. This parameter makes CAT6A the first choice for scenarios requiring long-distance high-speed transmission, such as data centers and enterprise core computer rooms.
Relationship Between Transmission Distance and Frequency
The transmission distance of twisted-pair cables is negatively correlated with signal frequency: the higher the frequency, the faster the signal attenuation, and the shorter the effective transmission distance. Through optimized structural design, CAT6A can still maintain a 10Gbps transmission distance of 100 meters at 500MHz high frequency (in line with the definition of "permanent link" in the TIA/EIA-568 standard), while CAT6 can only achieve a 10Gbps transmission distance of about 37 meters at 500MHz frequency. This parameter difference allows CAT6A to completely solve the "bottleneck problem" of CAT6 in long-distance high-frequency transmission.
II. Structural Design: "Escorting" High-Frequency Signals
The physical structure of CAT6A is the basis of its parameter performance, and every design is centered on "reducing signal interference" and "reducing attenuation."
Shielding Design: Core Barrier Against Interference
High-frequency signals are susceptible to electromagnetic interference (EMI) and radio frequency interference (RFI). Therefore, CAT6A generally adopts shielding designs, with common types including:
STP (Shielded Twisted Pair)：Each pair of wires is wrapped with an aluminum foil shielding layer, and the entire cable is wrapped with a layer of metal braid to form "double shielding."
FTP (Foil Twisted Pair)：Only the entire cable is wrapped with a layer of aluminum foil shielding layer, which is lower in cost than STP but slightly weaker in anti-interference ability.
The key parameters of the shielding layer are "coverage rate" (usually ≥95%) and "thickness" (aluminum foil thickness is about 0.02-0.05mm). The higher the coverage rate and the more uniform the thickness, the better the reflection and absorption effect on interference signals. In addition, the shielding layer needs to be grounded (ground resistance ≤4Ω) to introduce interference signals into the ground to avoid forming secondary interference in the shielding layer.
Pair Twisting: Physical Basis for Reducing Crosstalk
Crosstalk refers to signal coupling interference between adjacent pairs. At high frequencies, crosstalk will significantly increase. CAT6A reduces crosstalk by optimizing the "twisting density" and "twist pitch" (winding cycle of each pair of wires) of the pairs:
Twisting density: The twisting density of CAT6A pairs is more than 30% higher than that of CAT6, with more winding times per meter (for example, the blue pair has a twist pitch of about 10-15mm, and the orange pair has a twist pitch of about 12-18mm). Moreover, the twist pitches of the four pairs are different to avoid "synchronous interference."
Insulation thickness: The insulation layer of the pairs is made of high-density polyethylene (HDPE) with a thickness of about 0.2-0.3mm, which is thicker than that of CAT6, further reducing signal penetration between pairs.
Sheath and Cable Diameter
III. Electrical Parameters: Quantifying the Stability of Signal Transmission
Electrical parameters are the "hard indicators" to measure the performance of CAT6A, strictly regulated by standards such as TIA/EIA-568-C.2-1 and ISO/IEC 11801. The following are the specific requirements for core parameters.
IV. Environmental Adaptability: Reliability Guarantee for Complex Scenarios
The parameter design of CAT6A needs to adapt to the physical and climatic conditions of different environments to ensure long-term stable operation.
Operating Temperature Range
The operating temperature of standard CAT6A is -20℃~75℃, and industrial-grade products can be extended to -40℃~85℃. In high-temperature environments (such as data center computer rooms), the sheath and insulation layer need to maintain stability: the melting temperature of the HDPE insulation layer is ≥120℃, and the heat distortion temperature of the LSZH sheath is ≥80℃ to avoid structural aging due to high temperature.
Mechanical Stress Resistance
Interference Resistance and Corrosion Prevention
The shielding layer not only resists electromagnetic interference but also can resist slight corrosion: the metal braid of STP is made of tinned copper, with salt spray resistance ≥48 hours (in accordance with ASTM B117 standard), suitable for humid or dusty environments (such as factory workshops). Unshielded CAT6A optimizes pair twisting to meet basic anti-interference requirements without shielding (suitable for office scenarios with less interference).
V. Compatibility and Application Scenarios: Practical Implementation of Parameter Advantages
The parameter design of CAT6A takes into account compatibility with old standards while meeting the needs of new-generation networks.
Downward Compatibility
CAT6A connectors (such as RJ45) are fully compatible with CAT6 and CAT5e, and can support low-speed protocols such as 100Mbps (Fast Ethernet) and 1Gbps (Gigabit Ethernet). The cabling system can be upgraded without replacing existing equipment. However, it should be noted that if CAT6A and lower-category cables are mixed in the link, the overall performance will be reduced to the lowest category level.
Typical Application Scenarios
Based on the parameter advantages of 500MHz bandwidth and 10Gbps rate, CAT6A is mainly used in:
Data centers: Supporting high-speed interconnection of server clusters and storage area networks (SAN) to meet the real-time data transmission needs of cloud computing and big data.
Enterprise core computer rooms: Carrying large-bandwidth services such as video conferences and high-definition monitoring. A single cable can simultaneously transmit 4K video (about 25Mbps) and multiple voice signals.
High-density cabling areas: Such as the weak current room of office buildings, supporting multiple users to access high-speed networks simultaneously to avoid congestion caused by insufficient bandwidth.
VI. Standards and Specifications: Authoritative Basis for Parameters
The parameter requirements of CAT6A are strictly defined by international standards to ensure the consistency of global products:
TIA/EIA-568-C.2-1: Specifies the electrical parameters (such as attenuation and crosstalk limits) and physical structure requirements of CAT6A in North America.
ISO/IEC 11801: A globally standard that regulates the transmission performance and testing methods of CAT6A, which is basically consistent with TIA standards, with only slight differences in some parameters (such as return loss limits).
These standards ensure that the performance of CAT6A products is quantifiable and verifiable by specifying parameter testing methods (such as using professional testers like FLUKE DSX-8000).
Summary
CAT6A has become a core cabling solution for supporting high-speed networks through its transmission performance of 500MHz bandwidth and 10Gbps rate (100 meters), optimized shielding and twisting structure, and strict electrical parameter control. Its parameter characteristics not only meet the current needs of cloud computing and big data but also reserve space for future network upgrades (such as potential support for 25Gbps and 40Gbps protocols). In practical applications, shielded or unshielded types should be selected based on factors such as environmental interference, wiring distance, and cost budget to give full play to the parameter advantages of CAT6A.
