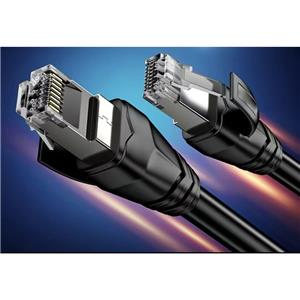

CAT8 Ethernet Cable For Short-Distance 40Gbps Transmission With 2000MHz Bandwidth

CAT8 Ethernet Cable For Short-Distance 40Gbps Transmission With 2000MHz Bandwidth

In the evolution of twisted-pair cabling, CAT8 (Category 8 cable) represents the highest performance grade in current copper cable standards, specifically designed for short-distance, ultra-high bandwidth scenarios such as data centers and supercomputing centers. Compared to CAT7’s 1000MHz bandwidth and 100Gbps short-distance speed, CAT8 achieves stable 25Gbps/40Gbps transmission through doubled bandwidth and stricter parameter optimization, emerging as a "core competitor" between copper cables and optical fibers in short-distance applications. Below is a comprehensive analysis of CAT8’s parameter characteristics from dimensions including transmission performance, structural innovation, electrical parameters, and link design.

I. Transmission Performance: Breakthroughs in 2000MHz Bandwidth and 40Gbps Speed

The core parameter advantage of CAT8 lies in its ability to carry "ultra-high frequency signals," with transmission performance directly aligned with next-generation Ethernet standards, filling the gap for copper cables in the 25G/40Gbps domain.

Bandwidth

According to TIA-568.2-D (North American) and ISO/IEC 11801:2017 (international) standards, CAT8 has a rated bandwidth of 2000MHz (2GHz), doubling CAT7’s 1000MHz and quadrupling CAT6A’s 500MHz. This parameter enables CAT8 to stably transmit signals up to 2000MHz—high-frequency signals with higher "data density" provide the physical foundation for 25Gbps/40Gbps speeds. For example, the 40GBASE-T Ethernet protocol requires parallel modulation across four pairs within a 2000MHz bandwidth, and CAT8’s 2000MHz bandwidth not only meets this demand but also reserves 10% redundancy to handle signal fluctuations.

Data Rate

Data rate is CAT8’s most critical performance indicator, with strict standard-defined relationships between speed and distance:

Over a 30-meter distance, CAT8 stably supports 40Gbps (40 Gigabit Ethernet) transmission without speed attenuation;

Within 30 meters, it is also compatible with 25Gbps (25 Gigabit Ethernet) transmission, meeting medium-to-high speed scenario requirements;

It is backward compatible with lower-speed protocols such as 10Gbps (within 100 meters) and 1Gbps (within 100 meters), adapting to legacy equipment.

This parameter makes CAT8 the optimal solution for short-distance interconnections between "cabinets and switches" in data centers—for instance, with typical device spacing within server cabinets less than 5 meters, CAT8 easily supports 40Gbps at approximately 1/3 the cost of optical fibers with equivalent speeds.

Nonlinear Relationship Between Speed and Frequency

Unlike lower-category twisted pairs, CAT8’s speed improvement does not simply rely on doubled bandwidth: At 2000MHz, 40Gbps transmission is achieved through "parallel transmission across four pairs + advanced modulation techniques" (e.g., PAM-4 modulation, where each symbol carries 2 bits of data). By optimizing pair synchronization and signal modulation efficiency, CAT8 achieves a "spectral efficiency" of 1.25bps/Hz at 2000MHz (i.e., 1.25Mbps per MHz of bandwidth), compared to CAT7’s 0.1bps/Hz at 1000MHz—an efficiency increase of 12x.

II. Structural Design: Full-Link Anti-Interference Optimization from Shielding to Pair Twisting

CAT8’s physical structure forms the "hardware cornerstone" of its high-frequency performance, minimizing signal loss and interference at 2000MHz through multi-layer shielding, precision twisting, and specialized materials.

Shielding Design: Enhanced S/FTP "Full-Wrap Shielding"

To resist electromagnetic interference (EMI) and radio frequency interference (RFI) at 2000MHz, CAT8 mandatorily adopts an enhanced S/FTP (Screened/Foil Twisted Pair) structure—a dual-shielding design combining "individual pair aluminum foil shielding + overall metal braid shielding" with shielding parameters far exceeding CAT7:

Pair shielding: Each pair of conductors is wrapped in a "foil + polyester film composite shield" (0.06mm aluminum foil, 20% thicker than CAT7) with ≥99% coverage. Seams use an "overlapping crimp" process (overlap width ≥3mm) to prevent signal leakage through gaps;

Overall shielding: The four shielded pairs are enclosed in a "tinned copper braid + aluminum foil composite layer" with ≥95% braid density (vs. 90% for CAT7) and 0.1mm filament diameter (finer), achieving ≥100dB shielding effectiveness at 2000MHz (vs. 85dB for CAT7 at 1000MHz), fully blocking strong interference sources like industrial motors and radar.

Additionally, the shield requires "360° continuous grounding" (ground resistance ≤2Ω) to divert interference signals to the ground. Ground terminals use gold plating (thickness ≥5μm) to ensure low-impedance conduction at high frequencies.

Pair Twisting: Nanoscale Precision "Anti-Crosstalk Design"

Pair crosstalk at high frequencies is a core challenge for CAT8, with its twisting parameters optimized through precise calculations:

Twist Pitch: The four pairs have twist pitches of 6-8mm (blue pair), 7-9mm (orange pair), 8-10mm (green pair), and 9-11mm (red pair), with a twist pitch difference of ≥1mm between any two pairs (vs. 2mm for CAT7) and a twist pitch error ≤0.1mm (produced using laser calibration equipment), avoiding crosstalk amplification due to "frequency resonance";

Twisting Direction: Adjacent pairs use "reverse twisting" (one clockwise, one counterclockwise) to reduce magnetic coupling area, lowering inter-pair crosstalk by 60% compared to CAT7.

Conductors and Insulation: "Signal Carriers" with Low-Loss Materials

Conductor material: Uses "oxygen-free high-conductivity copper" (purity ≥99.996%) with conductivity ≥101% IACS (International Annealed Copper Standard) and a diameter of 0.6mm (AWG 22), 3.4% thicker than CAT7, reducing DC resistance to ≤7.5Ω/100 meters (vs. 8.5Ω for CAT7) and minimizing current loss;

Insulation layer: Uses "modified fluorinated ethylene propylene (FEP)" with a dielectric constant ≤1.3 (vs. 1.5 for CAT7’s foamed PE) and high-frequency dielectric loss (tanδ) ≤0.0008 (vs. 0.0015 for CAT7), reducing signal attenuation at 2000MHz by 40% compared to CAT7.

III. Electrical Parameters: Strict Limits at 2000MHz High Frequencies

CAT8’s electrical parameters are strictly regulated by TIA-568.2-D (North America) and ISO/IEC 11801:2017 (international), with advantages over previous generations particularly evident in high-frequency bands. Below are specific requirements for core parameters:

Attenuation

Attenuation refers to energy loss during signal transmission. CAT8’s attenuation limits at 2000MHz are tightly controlled (30 meters as the standard test distance):

At 100MHz, attenuation ≤16.0dB (vs. 19.0dB for CAT7 and 21.6dB for CAT6A);

At 500MHz, attenuation ≤28.0dB (vs. 35.0dB for CAT7);

At 1000MHz, attenuation ≤38.0dB (vs. 48.0dB for CAT7);

At 2000MHz, attenuation ≤55.0dB (undefined for CAT7 at this frequency).

This parameter means that over a 30-meter distance, the power loss of a 40Gbps signal transmitted through CAT8 is only 1/316 of the initial value (55dB corresponds to a power ratio of 1:3162), remaining detectable by receivers.

Crosstalk Parameters: Near "Zero Interference" Control

Crosstalk is the greatest obstacle to high-frequency transmission, and CAT8’s crosstalk limits remain excellent at 2000MHz:

Near-End Crosstalk (NEXT): ≥23.0dB at 2000MHz (vs. 24.0dB for CAT7 at 1000MHz), meaning crosstalk signal strength is only 1/200 of the useful signal;

Far-End Crosstalk (ELFEXT): ≥12.0dB at 2000MHz (vs. 15.0dB for CAT7 at 1000MHz), ensuring signal purity at the far-end receiver;

Power Sum NEXT/PSELFEXT: At 2000MHz, PSNEXT ≥20.0dB and PSELFEXT ≥9.0dB, meeting the anti-interference requirements of 40Gbps Ethernet’s "four-pair parallel transmission."

These parameters are achieved through "independent grounding of pair shields"—each pair’s shield is connected via a separate ground terminal, preventing interference signals from different pairs from coupling within the shield.

Return Loss (RL)

Return loss measures signal reflection, with CAT8 achieving new heights in impedance control precision:

At 2000MHz, return loss ≥10dB (same as CAT7 at 1000MHz), meaning reflected signal power is only 1/10 of the incident signal;

Characteristic impedance is strictly controlled at 100Ω±5Ω (vs. ±10Ω for CAT7 and ±15Ω for CAT6A), with impedance variation ≤3Ω/m (monitored in real-time using laser diameter gauges to ensure conductor diameter accuracy), avoiding signal reflection due to impedance fluctuations during transmission.

Delay and Delay Skew

Delay: Within 30 meters, maximum delay at 2000MHz ≤140ns (vs. 500ns for CAT7 at 100 meters), with signal transmission speed approaching 70% of the speed of light;

Delay Skew: Transmission time difference between pairs ≤10ns (vs. 20ns for CAT7), ensuring "synchronized arrival" of signals from four pairs in 40Gbps Ethernet (as 40Gbps uses "four-pair parallelism," excessive delay skew causes data frame misalignment).

IV. Connectors and Link Design: "Last Mile" of End-to-End Performance

CAT8’s performance advantages depend not only on the cable itself but also on collaborative optimization of connectors and link design, forming an "end-to-end" high-frequency solution.

Dedicated Connectors: "High-Frequency Enhanced" RJ45

CAT8 uses GG45-RJ45 compatible connectors or TERA connectors, both meeting 2000MHz bandwidth requirements:

GG45-RJ45: Adds 4 shielded contacts to the traditional RJ45 (total 12 contacts). Contact pins use gold-plated beryllium copper (thickness ≥15μm) with impedance matching error ≤3Ω (at 2000MHz) and insertion loss ≤0.3dB (at 2000MHz), while remaining compatible with RJ45 plugs (performance drops to CAT6A level when inserted);

TERA connectors: Non-RJ45 structure with 1.27mm contact spacing (larger) and an "all-metal shielded housing" with ≥90dB shielding effectiveness (at 2000MHz), suitable for pure CAT8 links with insertion loss ≤0.2dB.

The connector and cable shields must be tightly connected via a "crimp ring" (contact resistance ≤5mΩ) to ensure shield continuity—any break in the shield causes 2000MHz signal leakage, increasing attenuation by over 30%.

Link Length and Structural Limitations

CAT8’s "permanent link" (fixed cabling) maximum length is 30 meters, and "channel link" (including equipment jumpers) maximum length is 24 meters (due to higher attenuation in jumpers). Links allow no "splicing" (maximum 2 connectors), with strict bending radius requirements:

Static bending (fixed installation) ≥16x cable diameter (CAT8 diameter ~9-11mm, i.e., ≥144-176mm);

Dynamic bending (during cabling) ≥24x cable diameter (≥216-264mm). Excessive bending causes shield wrinkling, increasing attenuation by 50%.

V. Environmental Adaptability: Reliability in Extreme Scenarios

CAT8’s parameter design addresses harsh conditions in data centers and industrial environments, with physical and chemical performance indicators far exceeding ordinary twisted pairs.

Temperature and Weather Resistance

Operating temperature range: Commercial grade -20℃~75℃; industrial grade -40℃~85℃ (suitable for cold storage or high-temperature equipment rooms);

Thermal aging performance: After 1000 hours at 85℃, attenuation increase ≤10%, shield adhesion ≥5N/cm (preventing high-temperature detachment).

Mechanical Strength and Durability

Tensile strength: Short-term (during installation) ≤150N; long-term (after fixing) ≤30N. Conductor elongation at break ≥20% (preventing diameter reduction due to stretching);

Wear resistance: Sheath remains undamaged after 1000 friction cycles (10N load, P120 grit sandpaper), suitable for equipment rooms with frequent plugging;

Vibration resistance: After 10-2000Hz vibration testing (10G acceleration), electrical parameter variation ≤5%, suitable for vehicle or marine vibration environments.

Flame Retardancy and Environmental Protection

Flame retardancy rating: Meets UL 94 V-0 (vertical burning) and IEC 60332-3-24 (bundle burning). Smoke density (Dmax) ≤200 and toxicity index ≤5 (per IEEE 1686) for enclosed environments like data centers;

Environmental indicators: Complies with EU RoHS 2.0 and China’s GB/T 26572, with heavy metal content (lead, mercury, etc.) ≤10ppm and halogen content ≤900ppm.

VI. Compatibility and Application Scenarios: Targeting Short-Distance Ultra-High Bandwidth Markets

CAT8’s parameter characteristics determine its specialized application scenarios—focused on short-distance, ultra-high bandwidth needs while maintaining limited backward compatibility.

Backward Compatibility

CAT8 is compatible with lower-category cables like CAT7 and CAT6A, but note:

Mixing with CAT7 reduces overall bandwidth to 1000MHz, with a maximum speed of 40Gbps (within 30 meters);

Mixing with CAT6A reduces bandwidth to 500MHz, with a maximum speed of 10Gbps (within 100 meters);

Inserting into RJ45 equipment automatically reduces performance to CAT6A level, suitable for "progressive upgrades."

Typical Application Scenarios

Leveraging 2000MHz bandwidth and 40Gbps speed, CAT8’s core applications include:

Data center cabinet interconnections: Connecting servers, storage devices, and top-of-rack switches (typically 5-10 meters), supporting 40Gbps at lower cost than fiber;

High-density computing clusters: Interconnections between AI training servers (requiring low latency and high bandwidth), with 25Gbps meeting 10TB/s data exchange needs;

Industrial automation: Factory machine vision systems (8K cameras requiring 25Gbps) and robot control systems (latency ≤1ms), with anti-interference ensuring stability;

Broadcasting: Equipment interconnections in 4K/8K OB vans, with a single CAT8 transmitting 4 channels of 8K video (≈10Gbps each).

VII. Parameter Comparison with Previous Generations: Why Choose CAT8?

A comparison of core parameters highlights CAT8’s upgrade value:

Parameter CAT6A CAT7 CAT8

Bandwidth 500MHz 1000MHz 2000MHz

Maximum short-distance speed 10Gbps@55m 100Gbps@15m 40Gbps@30m

Characteristic impedance 100Ω±15Ω 100Ω±10Ω 100Ω±5Ω

Attenuation at 2000MHz (30m) Undefined Undefined ≤55.0dB

Delay skew ≤50ns ≤20ns ≤10ns

Shielding effectiveness (high frequency) 60dB@500MHz 85dB@1000MHz 100dB@2000MHz

CAT8’s upgrades focus on "40Gbps@30m," filling the speed gap for CAT7 between 15-30 meters at a cost far lower than fiber, making it the optimal solution for short-distance data center interconnections.

VIII. Limitations and Future Outlook

Despite its excellent performance, CAT8 has limitations:

Strict distance constraints (30 meters) prevent replacing fiber for long-distance transmission;

High cost (≈5x CAT6A), suitable only for core links;

Difficult cabling (large diameter, strict bending requirements) requiring professional tools.

Future iterations may target "higher frequency bands" (3000MHz) and "longer distances" (50 meters), but due to copper’s physical limitations, its speed ceiling is projected at 100Gbps@10m, with long-term complementarity to fiber remaining necessary.

Summary

CAT8, through parameter breakthroughs of 2000MHz bandwidth and 40Gbps@30m, combined with enhanced S/FTP shielding, precision twisting, and dedicated connectors, represents the "ultimate form" of short-distance ultra-high-speed copper cables. Its strict control of electrical parameters at 2000MHz (e.g., attenuation ≤55dB, NEXT ≥23dB) enables it to meet 25G/40G Ethernet needs in data centers and industrial automation. Despite high costs and cabling requirements, CAT8’s cost-effectiveness in short-distance scenarios is significant, positioning it as the core upgrade direction for copper cabling over the next 5-10 years.parameters in high-frequency bands (such as attenuation ≤48dB and NEXT ≥24dB at 1000MHz) enables it to cope with the needs of extreme scenarios such as data centers and industrial automation. Although the cost is high and compatibility is limited, the parameter characteristics of CAT7 reserve sufficient space for future network upgrades and are the "ultimate solution" for high-end cabling
