In the architecture of optical fiber communication systems, the fiber optic adapter (also known as a fiber optic connector adapter or coupler) serves as a critical passive component that enables the precise alignment and connection of optical fibers. Despite its compact size, its parameter characteristics directly affect signal transmission efficiency, stability, and system reliability. From data centers to telecommunications networks, from industrial control to aerospace applications, the performance of fiber optic adapters determines the quality of the entire optical link. This article will comprehensively analyze the parameter characteristics of fiber optic adapters from multiple dimensions, including optical performance, mechanical properties, environmental adaptability, and interface standards, to reveal their technical essence and application value.

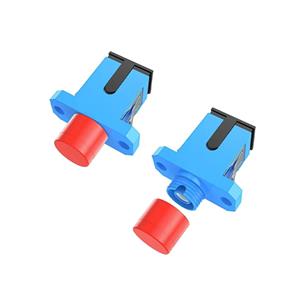

A Fiber Optic Adapter, also known as a fiber optic coupler or fiber optic flange, is mainly used in fiber optic networks to achieve precise docking of two fiber end faces, enabling maximum transmission of optical energy. The following is a detailed description of its parameter characteristics:
Optical Parameters
Insertion Loss: Refers to the power loss of optical signals when passing through a fiber optic adapter, usually measured in decibels (dB). The lower the insertion loss, the smaller the energy loss of the optical signal during transmission, and the better the performance of the adapter. Generally speaking, high-quality fiber optic adapters have an insertion loss of ≤0.2dB. The insertion loss of different types of fiber optic adapters may vary. For example, the typical insertion loss of single-mode fiber optic adapters such as LC, SC, and FC can be ≤0.3dB, and that of multi-mode fiber optic adapters can be ≤0.2dB. Insertion loss is mainly determined by factors such as the internal structural design of the fiber optic adapter, the precision of fiber docking, and the optical properties of materials. For instance, ceramic sleeves have high precision and smoothness, so fiber optic adapters using ceramic sleeves have relatively low insertion loss.
Return Loss: Also known as reflection loss, it is the ratio of the optical power reflected back to the light source direction to the incident optical power when the optical signal is transmitted in the fiber optic adapter, with the unit being dB. The larger the return loss, the less reflected light, and the less interference to the system.
Operating Wavelength: Refers to the wavelength range of optical signals in which the fiber optic adapter can work normally. Common operating wavelengths include 850nm, 1300nm, 1310nm, 1550nm, etc. Single-mode fiber optic adapters usually work at 1310nm and 1550nm wavelengths, while multi-mode fiber optic adapters mainly work at 850nm and 1300nm wavelengths. Some special fiber optic adapters may support a wider wavelength range, such as 1100-1610nm. The selection of operating wavelength needs to match the operating wavelengths of fibers and optical transceivers to ensure that optical signals can be effectively transmitted in the entire fiber link.
Exchangeability: Indicates the degree of influence on optical transmission performance when different fiber optic adapters are used interchangeably. Fiber optic adapters with good exchangeability have small changes in performance indicators such as insertion loss and return loss after replacement, and generally require exchangeability ≤0.2dB. This means that in the maintenance and upgrading of fiber optic networks, fiber optic adapters from different manufacturers or batches can be easily replaced without significantly affecting the performance of the entire system.
Repeatability: Refers to the consistency of performance indicators such as insertion loss of the same fiber optic adapter after multiple insertions and extractions. Fiber optic adapters with good repeatability have small changes in insertion loss after each insertion and extraction, usually requiring repeatability ≤0.1dB. This is very important for ensuring the stability and reliability of fiber optic networks, especially in occasions where fiber optic connectors need to be frequently plugged and unplugged, such as in laboratory tests or on-site maintenance.
Mechanical Durability: Reflects the ability of the fiber optic adapter to maintain stable performance after multiple insertion and extraction operations. Generally, fiber optic adapters are required to withstand at least 1000 insertion and extraction operations, and the change in insertion loss is still within the specified range, such as ≤0.2dB. Mechanical durability is closely related to the material quality, structural design, and manufacturing process of the fiber optic adapter. For example, the use of high-quality ceramic sleeves and strong shell materials can improve the mechanical durability of the fiber optic adapter.
Tensile Strength of Locking Mechanism: For some fiber optic adapters with locking mechanisms, such as the screw locking method of FC interfaces, the tensile strength of the locking mechanism needs to be considered. This parameter indicates that the locking mechanism can ensure the stability of the fiber connection when subjected to a certain tension, without loosening or falling off. It is usually required that the change in insertion loss is ≤0.2dB under a certain tension.
Vibration and Drop: In practical applications, fiber optic adapters may be affected by mechanical stresses such as vibration or drop. Therefore, it is necessary to consider their performance stability under these conditions. Generally, fiber optic adapters are required to have an increase in insertion loss ≤0.2dB after vibration or drop tests. For example, in some industrial environments or outdoor applications, fiber optic adapters may be affected by equipment vibration or accidental drops. Good vibration resistance and drop resistance can ensure the reliability of fiber optic connections.
Environmental Parameters
Temperature Stability: The performance of fiber optic adapters will be affected by temperature changes. Fiber optic adapters with good temperature stability have small changes in performance indicators such as insertion loss and return loss under different temperature environments. Generally, the operating temperature range of fiber optic adapters is -40℃ to 75℃, and the storage temperature range is -45℃ to 85℃. In high-temperature environments, the materials of fiber optic adapters may expand or deform, affecting the docking accuracy of fibers, thereby increasing insertion loss. In low-temperature environments, materials may become brittle, increasing the risk of mechanical damage. Therefore, when selecting fiber optic adapters, it is necessary to consider the temperature conditions of the actual application environment.
Dust - proof: Impurities such as dust may enter the inside of the fiber optic adapter, contaminate the fiber end face, and increase insertion loss and return loss. Therefore, fiber optic adapters are usually designed with dust-proof measures, such as using dust caps or sealed structures to prevent dust from entering. In actual use, attention should also be paid to keeping the fiber optic adapter clean and avoiding use in dusty environments.
Other Parameters
Number of Interfaces: Fiber optic adapters have various types such as single-core, dual-core, and four-core. Single-core fiber optic adapters can only connect one fiber, while dual-core and four-core fiber optic adapters can connect two or four fibers at the same time, which can improve the density and efficiency of fiber connections. In some fiber optic distribution frames or equipment with limited space, dual-core or four-core fiber optic adapters are widely used.
Sleeve Material: The sleeve inside the fiber optic adapter is a key component for achieving precise docking of fibers. Common sleeve materials include ceramics and plastics. Ceramic sleeves have the advantages of high precision, high hardness, and low expansion coefficient, which can ensure precise docking of fibers, thereby reducing insertion loss and return loss, so they are widely used in high-performance fiber optic adapters. Plastic sleeves have the characteristics of low cost and light weight, and are suitable for occasions where performance requirements are not particularly high.
Compliance: High-quality fiber optic adapters usually comply with relevant international standards and specifications, such as IEC (International Electrotechnical Commission), TIA/EIA (Telecommunications Industry Association/Electronic Industries Alliance), JIS (Japanese Industrial Standards), etc. Fiber optic adapters that meet these standards have certain guarantees in terms of performance and quality and can be used compatibly with other fiber optic equipment that meets the standards. In addition, some fiber optic adapters may comply with the RoHS (Restriction of Hazardous Substances) directive, which restricts the use of hazardous substances to protect the environment and human health.
