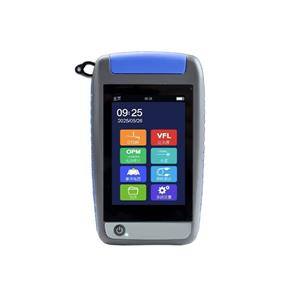

Portable Optical Time Domain Reflectometer (OTDR) For Fast Fiber Link Testing In Field Applications

The handheld Optical Time Domain Reflectometer (OTDR) is a portable, high-precision instrument designed to characterize and troubleshoot optical fiber links. Unlike benchtop OTDRs, its compact size and battery-powered operation make it indispensable for fieldwork—from fiber-to-the-home (FTTH) installations to telecom network maintenance. Its performance is defined by a suite of technical parameters that determine its ability to measure fiber length, locate faults (e.g., breaks, splices), and analyze signal loss. Below is a comprehensive analysis of the key parameter characteristics of handheld OTDRs, covering optical performance, measurement capabilities, operational features, and environmental adaptability.

1、Optical Performance Parameters: The Foundation of Accurate Testing

Optical performance parameters directly dictate the OTDR’s ability to send, receive, and interpret optical signals. These parameters are critical for resolving fine details in fiber links, especially in long-haul or high-loss scenarios.

Wavelength Support

Handheld OTDRs must cover the most common wavelengths used in fiber networks to ensure versatility across applications:

Multimode fibers (MMF): Typically support 850nm and 1300nm, the standard wavelengths for short-distance data center or campus networks. 850nm is preferred for high-bandwidth MMF (e.g., OM4) due to lower modal dispersion, while 1300nm offers lower attenuation for longer MMF links (up to 2km).

Single-mode fibers (SMF): Support 1310nm and 1550nm, the workhorses of long-haul telecom and metro networks. 1550nm has lower attenuation (≈0.2dB/km) than 1310nm (≈0.35dB/km), making it ideal for testing spans exceeding 100km. Advanced models add 1625nm to test passive optical networks (PONs) without interfering with active OLT signals (1490nm/1550nm).

Modern handheld OTDRs often feature dual-wavelength simultaneous testing (e.g., 1310nm/1550nm) to compare loss characteristics across wavelengths, critical for identifying wavelength-dependent issues like microbending.

Dynamic Range

Dynamic range is the most critical optical parameter, defined as the difference (in dB) between the OTDR’s peak launch power and its minimum detectable signal. It determines the maximum fiber length the OTDR can characterize:

Single-mode (SM): Entry-level models offer 28–32dB at 1310nm and 30–34dB at 1550nm, sufficient for FTTH (≤20km) and metro networks. Professional models reach 35–40dB, enabling testing of long-haul links (100–160km).

Multimode (MM): Typically 22–26dB at 850nm/1300nm, covering data center links (≤2km) where high modal noise requires lower dynamic range but higher resolution.

A larger dynamic range allows the OTDR to detect weak reflections from distant events (e.g., a splice at 100km) without being overwhelmed by noise. For example, a 34dB dynamic range at 1550nm can test ~160km of standard SMF (assuming 0.2dB/km attenuation).

Launch Power

Launch power (in dBm) is the strength of the optical pulse emitted by the OTDR. Higher launch power extends dynamic range but must be balanced to avoid damaging sensitive components (e.g., PON ONUs):

Single-mode: Typically -5 to +2dBm (1310nm/1550nm). Higher power (+2dBm) benefits long-haul testing, while lower power (-5dBm) is safer for PON networks.

Multimode: -10 to -3dBm (850nm/1300nm), as MMF’s higher modal dispersion reduces the need for extreme power.

Launch power stability is also critical—variations ≤±0.5dB over 8 hours ensure consistent measurements in field conditions.

Receiver Sensitivity

Receiver sensitivity (in dBm) is the minimum signal the OTDR can detect above noise. It works with launch power to define dynamic range:

For a 34dB dynamic range at 1550nm, sensitivity is typically ≤-36dBm (since dynamic range = launch power – sensitivity).

Sensitivity improves with longer integration times (e.g., 10s vs. 1s) but at the cost of testing speed—a tradeoff critical for fieldwork where time is limited.

2、Measurement Range and Accuracy: Defining Testing Capabilities

These parameters determine how far the OTDR can test, how precisely it can locate events, and how accurately it can quantify loss—key for troubleshooting and network documentation.

Maximum Test Distance

Maximum test distance is determined by dynamic range and fiber attenuation. Handheld OTDRs are optimized for field-friendly ranges:

Multimode: Up to 80km (theoretical), but practical limits are 5–20km due to MMF’s higher attenuation (2–3dB/km at 850nm).

Single-mode: 160–200km at 1550nm (34–38dB dynamic range), covering most metro and regional telecom links.

This range exceeds real-world needs for handheld use (field technicians rarely test beyond 100km), balancing portability and performance.

Distance Accuracy

Distance accuracy depends on the OTDR’s ability to measure time-of-flight (TOF) of optical pulses, converted to distance using the fiber’s refractive index (RI). Key metrics:

Absolute accuracy: Typically ±(1m + 0.005% of measured distance). For a 100km link, this translates to ±5.1m, ensuring precise fault location.

RI setting: Adjustable (1.46–1.48 for SMF; 1.48–1.50 for MMF) with 0.0001 increments. Incorrect RI introduces errors (e.g., 0.001 RI error adds ~0.1% distance error).

Modern OTDRs auto-calibrate RI using known fiber types, reducing user error in field settings.

Loss Measurement Accuracy

Loss accuracy (for splices, connectors, or fiber segments) is critical for network certification:

Splice loss: ±0.05dB (for losses ≤0.3dB), ensuring compliance with ITU-T G.652 standards (single-mode splice loss ≤0.1dB).

Fiber attenuation coefficient: ±0.02dB/km, enabling precise calculation of link loss budgets (e.g., a 50km link with 0.2dB/km attenuation should have total loss ≤10dB).

Accuracy improves with longer averaging times and wider pulse widths, but handheld models optimize for a 10–30s test window to maintain portability.

3、Resolution Parameters: Detecting Fine Details

Resolution determines the OTDR’s ability to distinguish closely spaced events (e.g., two connectors 5m apart in a patch panel). It is governed by pulse width and sampling density.

Pulse Width

Pulse width (ns) is the duration of the optical pulse emitted by the OTDR. It directly impacts:

Spatial resolution: Narrow pulses (10ns–100ns) resolve small distances (1–10m), critical for data centers with dense connections. For example, a 10ns pulse (≈1m in SMF) distinguishes two events 2m apart.

Dynamic range: Wide pulses (1μs–10μs) carry more energy, extending dynamic range but reducing resolution. A 10μs pulse (≈1km in SMF) suits long-haul testing but blurs events closer than 2km.

Handheld OTDRs offer adjustable pulse widths (10ns–10μs) to balance needs: narrow pulses for patch panels, wide pulses for long spans.

Event Blind Zone and Attenuation Blind Zone

Blind zones are periods when the OTDR cannot detect new events after a strong reflection (e.g., a connector):

Event blind zone (EBZ): The minimum distance after a reflection where a new event can be detected. Critical for dense links (e.g., FTTH distribution points). Handheld OTDRs achieve EBZ ≤5m with 10ns pulses.

Attenuation blind zone (ABZ): The distance required to accurately measure loss after a reflection. Typically ≤30m (10ns pulse), ensuring splice loss near connectors is measured correctly.

Low blind zones are essential for FTTH and data center testing, where events (splitters, connectors) are tightly packed.

Sampling Interval

Sampling interval (the distance between data points in the OTDR trace) determines trace detail:

Ranges from 0.1m (for high resolution) to 10m (for long spans).

A 0.1m interval captures fine details (e.g., microbends in a 10m fiber), while 10m reduces file size for 200km traces.

Handheld OTDRs auto-adjust sampling based on pulse width, ensuring optimal detail without excessive data storage.

4、Operational and Display Parameters: Usability in Field Conditions

Handheld OTDRs prioritize user-friendly design to streamline fieldwork, with parameters focused on speed, visibility, and ease of use.

Test Speed

Test speed (time per trace) balances accuracy and efficiency:

Quick test: 5–10s per wavelength (using short pulses and low averaging), ideal for initial fault localization.

Certification test: 30–60s per wavelength (long pulses, high averaging) for detailed loss analysis, meeting TIA-568 or ITU standards.

Modern models offer “adaptive testing,” auto-selecting pulse widths and averaging based on fiber length, reducing user input.

Display and Interface

The display is critical for analyzing traces in bright sunlight or dim enclosures:

Screen size: 5–7 inches, large enough to view 100km traces with zoomed segments.

Resolution: 1280×720 (HD) or higher, with anti-glare coating and backlighting (1000+ nits) for outdoor visibility.

Touchscreen: Water- and glove-resistant, with physical buttons as backups for wet conditions.

Interface features include one-touch auto-analysis (marking events, calculating loss), trace overlay (comparing before/after repairs), and customizable thresholds (e.g., splice loss >0.3dB flagged as failed).

Battery Life

Battery life defines field autonomy, with handheld OTDRs using lithium-ion batteries:

Typical runtime: 8–12 hours (100+ quick tests or 30+ certification tests).

Fast charging: 50% charge in 1 hour, enabling all-day use with a 30-minute midday charge.

Power-saving modes: Auto-shutdown after 5 minutes of inactivity, dimmable display to extend life.

Hot-swappable batteries are a premium feature, allowing uninterrupted testing in remote locations.

5、Environmental and Durability Parameters: Surviving Harsh Conditions

Fieldwork exposes OTDRs to extreme temperatures, moisture, and physical stress, requiring robust environmental parameters.

Operating Temperature and Humidity

Temperature range: -10°C to 50°C (commercial) or -20°C to 60°C (industrial), with storage temperatures extending to -40°C to 70°C. This ensures functionality in desert or winter conditions.

Humidity: 5%–95% non-condensing, preventing fogging or corrosion in tropical or coastal areas.

Ingress Protection (IP) Rating

IP rating defines resistance to dust and water:

IP54: Dust-resistant, water-resistant to splashes (most common for general field use).

IP65/67: Dust-tight, water-resistant to low-pressure jets (65) or temporary submersion (67), suitable for rainy or dusty construction sites.

Mechanical Durability

Drop resistance: Survives 1.2m drops onto concrete (per IEC 60068-2-32), critical for accidental falls from ladders or utility poles.

Vibration resistance: Withstands 10–500Hz vibrations (10G acceleration), ensuring reliability in vehicle transport.

These features reduce downtime from field damage, a key cost consideration for service teams.

6、Data Management and Connectivity: Streamlining Workflows

Handheld OTDRs integrate connectivity to simplify reporting and data sharing, with parameters focused on storage, export, and integration.

Storage Capacity

Internal storage: 32GB–128GB, holding 10,000+ traces (each ~5MB).

Expandable via microSD (up to 256GB), useful for multi-day projects without cloud access.

Connectivity Options

Wireless: Wi-Fi (802.11ac) and Bluetooth 5.0 for syncing traces to phones/tablets or printing reports.

Wired: USB-C (data transfer, charging) and HDMI (projecting traces to a monitor for team reviews).

NFC: Quick pairing with smartphones for one-tap data transfer.

Reporting Capabilities

Standards compliance: Generates PDF reports meeting TIA-568, ISO/IEC 11801, or ITU-T G.650, including event tables, loss budgets, and trace images.

Customization: Branded templates, pass/fail criteria, and digital signatures for client certification.

Automated reporting reduces paperwork, a major efficiency gain for field teams.

7、Specialized Features for Target Applications

Handheld OTDRs often include application-specific parameters to address niche needs:

PON Testing

For FTTH networks, PON-specific features prevent interference with live OLT signals:

1625nm testing: Avoids 1490nm (data downstream) and 1550nm (video) bands, safely testing PON links without disrupting service.

Splitter detection: Identifies passive splitters (1:32, 1:64) and calculates loss per branch, critical for troubleshooting customer outages.

Dark Fiber and Live Fiber Testing

Live fiber testing: Filters out 1310/1550nm signals from active links, allowing OTDR testing without interrupting traffic.

Dark fiber mode: Maximizes dynamic range for unlit fibers, common in new network deployments.

OTDR Trace Analysis Software

Companion software (desktop/mobile) extends functionality:

Advanced event analysis (e.g., distinguishing macro bends from splices).

Batch processing of traces for large-scale network audits.

GIS integration (mapping fault locations to physical addresses).

8、Comparison with Benchtop OTDRs: Tradeoffs for Portability

Handheld OTDRs sacrifice some performance for portability, with key differences:

Dynamic range: Benchtop models reach 45dB+ (testing 300+km), while handhelds max at 38dB (200km).

Weight: Handhelds (1–2kg) vs. benchtops (5–10kg), critical for climbing poles or working in tight spaces.

Power: Benchtops use AC power; handhelds rely on batteries, limiting continuous high-power testing.

These tradeoffs make handhelds ideal for fieldwork, while benchtops suit lab certification.

9、Conclusion

Handheld OTDRs combine precision and portability, with parameters tailored to field conditions. Key metrics like dynamic range, blind zones, and battery life determine their suitability for applications:

FTTH/access networks: Prioritize low blind zones, PON testing, and 8-hour battery life.

Telecom/metro links: Need high dynamic range (34dB+), 1550nm performance, and ruggedness.

Data centers: Require high resolution (0.1m sampling), quick testing, and dense event detection.

By balancing optical performance, usability, and durability, handheld OTDRs empower technicians to troubleshoot, certify, and maintain fiber networks efficiently—whether in urban data centers or remote rural areas. As fiber speeds increase (400G/800G), future handheld OTDRs will likely enhance dynamic range and test speed, while retaining the portability that makes them indispensable in the field.
