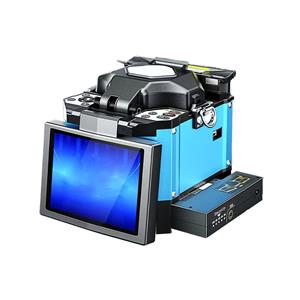

Handheld Fiber Optic Fusion Splicer For Fast And Low-Loss Optical Cable Splicing
In the construction and maintenance of optical fiber communication networks, the Optical Fiber Fusion Splicer is a core device for achieving permanent optical fiber connections. Its parameter performance directly determines the quality, stability, and construction efficiency of optical fiber connections. As a precision instrument integrating optical, mechanical, electronic, and thermal technologies, the parameter system of optical fiber fusion splicers is complex and interrelated, requiring comprehensive consideration from multiple dimensions such as splicing performance, alignment accuracy, and environmental adaptability. The following is a detailed analysis of its parameter characteristics from six core dimensions.
Core Parameters of Splicing Performance
Splicing performance is a key indicator for measuring the core capability of an optical fiber fusion splicer, directly related to the transmission quality and service life of optical fiber links. It is mainly reflected in four aspects: splicing loss, splicing speed, return loss, and tension testing.
Splicing loss is a core parameter for evaluating splicing quality, referring to the power attenuation value of signal transmission after two optical fibers are spliced, with the unit being dB. High-quality fusion splicers can achieve typical losses as low as 0.02dB or less in single-mode fiber (SMF) splicing, ≤0.05dB for multi-mode fiber (MMF) splicing, and ≤0.08dB for dispersion-shifted fiber (DSF) splicing. This parameter is jointly affected by optical fiber alignment accuracy, discharge parameter matching, and optical fiber end-face quality, among which alignment accuracy has an impact weight of over 60%. Industry standards require the average splicing loss of single-mode fibers to be ≤0.05dB, while the actual loss of high-end models in trunk line construction is usually controlled within the range of 0.01-0.03dB. It is worth noting that the repeatability of splicing loss is also important. High-quality models have a loss standard deviation of ≤0.01dB, ensuring the consistency of batch splicing quality.
Splicing speed directly affects construction efficiency, usually measured by the time taken to complete a single splice (including pre-fusion, discharge, and cooling). Modern high-speed fusion splicers have shortened the standard splicing mode time to less than 7 seconds, and the fast mode can be compressed to 5 seconds, while the high-precision mode for special fibers may require 10-15 seconds. This parameter is jointly determined by discharge program optimization, mechanical action response speed, and algorithm efficiency. For example, a certain brand's X-900 model adopts dual CPU parallel processing, shortening the discharge parameter calculation time by 40%, and 配合 high-speed stepping motors to achieve 6-second fast splicing. Splicing speed is particularly important in high-density operation scenarios such as FTTH home installation construction, which can increase the daily construction volume by more than 30%.
Return Loss (ORL) reflects the ability of the splice point to suppress reflected signals, with the unit being dB, and higher values are better. High-quality fusion splicers can achieve return loss ≥60dB by optimizing discharge energy distribution and optical fiber end-face processing, far higher than the industry standard requirement of 50dB. This parameter is crucial in scenarios sensitive to signal reflection such as CATV networks and data centers. Excessively low return loss can cause signal interference and transmission rate degradation. Return loss mainly depends on the smoothness of the splicing interface and refractive index matching. Models adopting gradient energy discharge mode are more likely to achieve high return loss.
Tension testing is a key indicator for verifying splicing strength, referring to the minimum tensile force that the optical fiber can withstand after splicing, with the unit being N. According to IEC standards, the tension of qualified splice points should be ≥4N. High-quality fusion splicers can control the recrystallization degree of glass in the splicing area to achieve a tension of 6-8N, close to 80% of the original optical fiber strength. Tension testing is usually completed by a built-in tension sensor. During the test, the tension increases at a rate of 0.5N/s until the optical fiber breaks, and the breaking position and maximum tension value are recorded. If the breaking point is outside the splicing area (i.e., the optical fiber itself breaks), the test is judged as qualified.
Key Parameters of Alignment System
The alignment system is the "brain" of the fusion splicer, determining the upper limit of splicing accuracy. It mainly includes four core parameters: alignment method, alignment accuracy, image acquisition system, and automatic calibration function.
Alignment methods are divided into two categories: Clad Alignment and Core Alignment, each with applicable scenarios. Clad alignment uses the optical fiber cladding (125μm in diameter) as the positioning reference, featuring simple structure and fast speed, with alignment time ≤1.5 seconds. It is suitable for multi-mode optical fibers and FTTH and other scenarios where precision requirements are not extreme, with typical alignment error ≤1μm. Core alignment achieves precise alignment by identifying the position of the core (9-10μm in diameter), using image processing algorithms to extract the core contour, with alignment time of 2-3 seconds and error controllable within ±0.5μm. It is the first choice for single-mode long-distance communication trunk lines. High-end models also have a hybrid alignment mode, which can automatically identify the optical fiber type and switch references, taking into account both accuracy and efficiency.
Alignment accuracy quantifies the offset of the optical fiber axis, with the unit being μm, divided into X-axis (horizontal) and Y-axis (vertical) direction errors. The typical accuracy of core alignment models is ±0.3μm, and that of cladding alignment is ±1μm, while ultra-precision models for special optical fibers can reach ±0.1μm. This parameter is jointly determined by optical system resolution, motor control accuracy, and algorithm iteration capability. For example, a certain model adopts a 4-megapixel CMOS sensor, combined with a piezoelectric ceramic motor with 5μm stepping accuracy, to achieve 0.2μm-level alignment. For every 0.1μm improvement in alignment accuracy, the splicing loss of single-mode optical fibers can be reduced by 0.005-0.01dB, which has a significant impact in ultra-long-distance links such as transoceanic optical cables.
The image acquisition system is the "eye" of alignment, determined by the number of cameras, resolution, and optical magnification. Mainstream models are equipped with 2-4 high-definition cameras, with a single camera resolution ≥1280×960 pixels, optical magnification ≥200 times, and digital magnification up to 400 times. Some high-end models adopt a dual-camera + dual-optical path design, which can simultaneously collect images of the side and end-face of the optical fiber, eliminating viewing blind spots. Image acquisition frequency is also crucial, with a frame rate ≥30 frames/second to ensure no motion blur during dynamic alignment. Advanced image processing algorithms (such as edge enhancement and adaptive threshold segmentation) can maintain stable recognition even when the optical fiber is stained or bent.
The automatic calibration function ensures long-term alignment accuracy, including discharge calibration, environmental compensation, and mechanical calibration. Discharge calibration automatically corrects discharge parameters by detecting changes in voltage and current between electrodes to ensure stable energy in different environments, with a calibration cycle ≤3 seconds. The environmental compensation function monitors temperature, humidity, and air pressure in real-time, updating discharge parameters every 0.5 seconds, and can maintain alignment accuracy within the temperature range of -10℃ to 50℃. Mechanical calibration can automatically compensate for guide rail wear and temperature deformation, achieving positioning error correction through the laser interferometer principle, ensuring that alignment accuracy attenuation is ≤0.1μm/year during long-term use.
Performance Parameters of Heating System
The heating system is used for curing and protecting the heat-shrinkable tube after splicing, and its performance directly affects the mechanical strength and sealing of the joint. Core parameters include heating method, heating temperature, heating time, and heat-shrink compatibility.
Heating methods mainly include two technical routes: hot air circulation and infrared radiation. Hot air circulation uniformly blows the heat generated by the heating wire to the heat-shrinkable tube through a micro fan, with heating uniformity of ±5℃. It is suitable for various heat-shrinkable tubes, especially for large-diameter heat-shrinkable tubes. Infrared radiation uses directional radiation heating from infrared lamps, featuring fast heating speed, thermal response time ≤2 seconds, and better energy efficiency than hot air type. It is suitable for small-diameter heat-shrinkable tubes and low-temperature environments, but attention should be paid to radiation uniformity. High-end models mostly adopt hybrid heating technology, combining the advantages of both to achieve the effect of "rapid heating + uniform heat preservation".
The heating temperature range is usually 180-250℃, with adjustment accuracy of ±2℃, supporting 5℃ step fine adjustment. Different heat-shrinkable tube materials need to match specific temperatures: ordinary PE heat-shrinkable tubes are suitable for 190-210℃, and high-temperature resistant fluoroplastic heat-shrinkable tubes need 220-240℃. High-quality fusion splicers have a temperature calibration function, which can monitor the temperature of the heating tank in real-time through a built-in thermocouple to ensure that the deviation between the displayed value and the actual value is ≤3℃. The stability of heating temperature is crucial; excessive fluctuations can cause blistering or incomplete shrinkage of the heat-shrinkable tube, affecting the protective effect.
Heating time can be adjusted within the range of 15-60 seconds, with accuracy of ±1 second, determined by the length and diameter of the heat-shrinkable tube. 60mm short heat-shrinkable tubes require 15-20 seconds, 100mm long heat-shrinkable tubes require 25-30 seconds, and reinforced heat-shrinkable tubes with a diameter of more than 3mm may require 40-50 seconds. Advanced models have an intelligent heating function, which can automatically recommend heating time according to the type of heat-shrinkable tube, or directly call preset parameters through barcode scanning. Too short heating time will cause insufficient melting of the glue, and too long heating time may damage the optical fiber coating.
Heat-shrink compatibility reflects the ability of the fusion splicer to adapt to different specifications of heat-shrinkable tubes, including length (40-120mm), diameter (0.9-3.0mm), and type (ordinary, reinforced, drop cable special). Models with dual-slot heating design can be compatible with two different heat-shrinkable tubes without replacing the heating slot. The heating slot is coated with Teflon, which is high-temperature resistant and non-stick, facilitating cleaning of residual glue. Some models also support the heating installation of optical fiber bending limiters, expanding application scenarios.
Operation and Environmental Adaptability Parameters
Operational convenience and environmental adaptability determine the practicality of the fusion splicer in complex working conditions, mainly including display system, battery life, protection level, and extreme environment adaptability.
The display system directly affects the operating experience, determined by screen size, resolution, and viewing angle. Mainstream models are equipped with 5-7 inch TFT color touch screens, with resolution ≥1280×720, supporting capacitive touch and operable with gloves. The screen brightness is ≥500cd/m², and the contrast ratio is ≥800:1, ensuring clear visibility in sunlight. Some high-end models adopt a rotatable screen (0-180°) and automatic backlight adjustment to adapt to different operating postures and light environments. The screen also needs to have impact resistance and pass a 1-meter drop test without functional abnormalities.
Battery life is measured by the number of splicing + heating cycles that can be completed on a single full charge. The industry standard is ≥80 times, and high-quality models can reach 120-150 times. The battery capacity is usually 7.4V/4000mAh-6000mAh lithium battery, supporting fast charging technology, which can be charged to 80% in 2 hours and is compatible with car charging. The battery management system has overcharge, over-discharge, and short-circuit protection, with a cycle life of ≥500 times. The detachable battery design facilitates the replacement of backup batteries, ensuring continuous construction is not affected by power outages.
The protection level reflects the ability of the equipment to resist external interference, expressed by the IP code. Construction-grade fusion splicers should at least reach IP52 (dustproof + protection against vertical dripping water), while industrial-grade models can reach IP65 (completely dustproof + protection against low-pressure water spray). Key components such as interfaces and buttons adopt a sealed design, and the display screen is equipped with scratch-resistant glass. Protection performance is crucial in outdoor rain and fog, dusty environment construction, which can reduce the probability of failures.
Extreme environment adaptability includes operating temperature, humidity, altitude, and vibration resistance. The operating temperature range is usually -10℃ to 50℃. In low-temperature environments, normal startup is achieved through battery preheating and heating tank insulation; in high-temperature environments, intelligent heat dissipation is adopted to ensure the chip temperature is ≤70℃. The humidity adaptation range is 10%-95%RH (no condensation), and anti-condensation design is adopted to avoid circuit short circuits. The altitude adaptation capacity is ≥3000 meters. In high-altitude mode, the discharge voltage is automatically reduced to compensate for ionization changes caused by thin air. Vibration resistance passes 10-500Hz random vibration test, and the transportation process can withstand 20G impact without structural damage.
Intelligent Functions and Auxiliary Parameters
Modern fusion splicers integrate rich intelligent functions to improve operating efficiency and reliability, mainly including optical fiber identification, parameter storage, data management, and fault diagnosis.
The automatic optical fiber identification function can automatically determine the optical fiber type (single-mode, multi-mode, dispersion-shifted, etc.) through image analysis, with an identification accuracy of ≥98%. It eliminates the need for manual parameter selection and reduces operational errors. The identification process takes ≤2 seconds, achieving classification by analyzing core refractive index distribution, cladding color, and coating characteristics. High-end models can also identify special optical fibers such as bend-insensitive fibers (BIF) and panda-type polarization-maintaining fibers (PMF), and automatically call matching splicing programs.
Parameter storage capacity reflects the personalized customization level of the equipment. Mainstream models can store 50-100 sets of custom splicing programs and 20-30 sets of heating programs, supporting program naming and password protection. Each set of programs includes more than 20 parameters such as discharge voltage, current, time, and pre-fusion energy. Users can fine-tune according to special optical fiber or environmental requirements, save them, and directly call them for next use. The parameter backup function can export programs to a USB flash drive or cloud, facilitating unified configuration of multiple machines.
The data management function is used to record and trace splicing information, including splicing time, loss value, optical fiber type, operator, and other data, with a storage capacity of ≥10,000 records. Data can be exported to CSV or PDF format via USB, Bluetooth, or Wi-Fi, supporting docking with construction management systems. Some models are equipped with a GPS module, which can record the geographical location of splicing points for later maintenance positioning. The data encryption function ensures that records are not tampered with, meeting the audit requirements of communication engineering.
The fault diagnosis system monitors the equipment status in real-time through sensors, and can identify more than 30 common problems such as electrode aging, motor abnormalities, excessive temperature, and battery failures, prompting the cause of the failure and solutions with codes and text. Advanced diagnostic functions can also analyze historical data, predict the life of vulnerable components, and remind in advance of maintenance operations such as electrode replacement and lens cleaning. The remote diagnosis function connects to the manufacturer's server through a 4G module, allowing technicians to view equipment logs remotely and shorten fault time.
Mechanical Structure and Consumable Parameters
Mechanical structure design and consumable life affect equipment durability and use cost, mainly including electrode life, mechanical life, weight and size, and ease of replacement of vulnerable parts.
Electrode life refers to the effective number of uses of the discharge electrode. The typical life of tungsten wire electrodes is 2000-3000 times, tantalum alloy electrodes can reach 5000-6000 times, and gold-plated electrodes can be extended to more than 8000 times. Electrode life is affected by discharge energy, cleanliness, and maintenance frequency. Regular cleaning with special cleaning agents can extend the life by 30%. Electrode replacement should be convenient, requiring no professional tools, with replacement time ≤3 minutes, and discharge parameters are automatically calibrated after replacement.
Mechanical life reflects the durability of core components, including motors, guide rails, and buttons. The stepping motor life is ≥100,000 actions, the guide rail wear resistance is ≥50,000 times, and the button press life is ≥100,000 times. The overall design life of the equipment is ≥5 years or 50,000 splices, and it can work stably for more than 3 years under 8-hour high-intensity daily use. The mechanical structure adopts a modular design, and key components such as alignment lenses and heating tanks can be replaced separately, reducing maintenance costs.
Weight and size affect portability. Construction-type fusion splicers usually weigh 1.5-2.5kg, with a size of about 200×150×100mm, and are convenient for single-person carrying with a suitcase. Lightweight models adopt magnesium alloy shells, which can reduce the weight to 1.2kg, but need to balance strength and cost. Ergonomic design includes non-slip grip and reasonable button layout, which is not easy to fatigue during long-term operation.
The convenience of replacing vulnerable parts directly affects maintenance efficiency. Vulnerable parts such as lenses, electrodes, and heating tanks need to adopt a snap-on design, and replacement does not require disassembling the entire machine. Cleaning tools (brushes, cleaning agents) are integrated in the body or accessory box for convenient on-site maintenance. Some models are equipped with a consumable indicator, which can display the remaining life of the electrode and lens cleanliness in real-time to avoid sudden failures affecting construction.
In conclusion, the parameter system of optical fiber fusion splicers is a comprehensive embodiment of technical performance, practical experience, and environmental adaptability. When selecting models, comprehensive evaluation should be based on application scenarios (trunk line/access/special), optical fiber types, and environmental conditions: trunk line construction should prioritize core alignment accuracy and low loss; FTTH construction should focus on speed and portability; industrial environments need to strengthen protection level and stability. With the development of optical fiber communication towards ultra-high speed and large capacity, fusion splicer parameters will continue to evolve towards high precision, intelligence, and long life, providing core support for the construction of next-generation communication networks.
