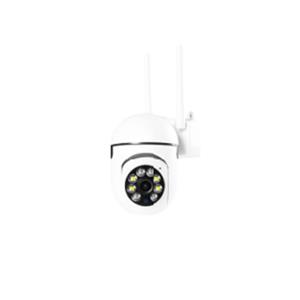

WiFi-Enabled Wall-Mount PT Camera with 3MP Image Quality and Full-Angle Human Detection
In the fields of security monitoring, remote conferences, teaching live broadcasts, etc., wall-mounted pan-tilt cameras (Wall-mounted PT Camera) have become the preferred equipment for more and more scenarios due to their flexible steering performance, high-definition imaging effect and convenient installation method. This type of camera realizes horizontal and vertical rotation through precise motor control, combined with high-power optical zoom technology, which can capture detailed pictures in a large monitoring area. This article will elaborate on the core parameters and characteristics of wall-mounted pan-tilt cameras from multiple dimensions such as optical performance, rotation system, imaging technology, intelligent functions, and installation specifications, providing reference for selection in different scenarios.
Optical Performance Parameters: The Core Determining Picture Clarity
The optical performance of wall-mounted pan-tilt cameras directly affects the detail presentation ability of monitoring pictures, which is mainly reflected by parameters such as lens focal length, optical zoom multiple, and aperture size. Optical zoom multiple is a key indicator to measure the long-distance shooting ability of the camera. Mainstream products usually have 10x to 30x optical zoom, and high-end models can reach more than 40x. For example, a 20x optical zoom camera of a certain brand can clearly identify vehicle license plates within 100 meters, while a 30x optical zoom model can capture facial features of people 200 meters away. Different from digital zoom, optical zoom is realized by the physical movement of the lens group, which will not lose the picture resolution. This is also an important reason why professional monitoring equipment emphasizes optical zoom performance.
Lens focal length range is directly related to the zoom multiple. Taking a 10x optical zoom lens as an example, its focal length is usually between 4.7mm-47mm, covering the shooting range from wide-angle to telephoto. The wide-angle end (small focal length) can realize a large range of monitoring, suitable for capturing panoramic pictures, such as the overall scene of the conference room, the distribution of people in the square, etc.; the telephoto end (large focal length) is used for local detail magnification, suitable for tracking specific targets. Some high-end models adopt a variable focus lens design, and the focal length range can be extended to 2.8mm-120mm, which can not only realize 180° wide-angle monitoring, but also accurately shoot long-distance targets.
Aperture value determines the light intake of the lens, which directly affects the imaging effect in low-light environments. The aperture of wall-mounted pan-tilt cameras is usually F1.6-F2.8, and the smaller the value, the larger the aperture and the more light intake. In night or low-light scenes, a large-aperture lens (such as F1.6) can increase the brightness of the picture by increasing the light intake. With the infrared night vision function, it can realize clear monitoring in 0Lux environment. Some models adopt intelligent aperture adjustment technology, which can automatically adjust the aperture size according to light changes to ensure balanced picture exposure under complex light conditions such as strong light and backlight.
Optical resolution is another core parameter to measure picture clarity. At present, mainstream products have fully entered the 4K era (3840×2160 pixels), and some high-end models support 8K ultra-high-definition resolution. 4K resolution has 4 times more details than 1080P (1920×1080 pixels), and can clearly present more texture information, such as text on paper and subtle features on object surfaces. In scenes where image magnification analysis is required, the advantage of high resolution is particularly obvious. Even if the local part of the picture is cropped and enlarged, good clarity can still be maintained.
Rotation System Parameters: Precise Control and Large-scale Coverage
The core advantage of wall-mounted pan-tilt cameras lies in their flexible steering ability, which is determined by parameters such as horizontal rotation angle, vertical rotation angle, and rotation speed. Horizontal rotation angle is an important indicator to measure the monitoring range of the camera. Most products support 350°-360° continuous rotation, and some models can achieve 360° dead-angle-free monitoring through mechanical design optimization to avoid monitoring blind spots. For example, in the supermarket security scene, a 360° horizontally rotating camera can cover the entire shelf channel, and can automatically inspect according to the set route with the preset position function.
Vertical rotation angle is usually between -90° and +90°, that is, it can rotate from vertically upward to vertically downward to meet monitoring needs at different heights. When installed indoors, the larger the downward rotation angle, the wider the coverage of the ground area, which is suitable for monitoring key areas such as counters and cash registers; upward rotation can monitor high windows, shelf tops and other positions. Some models designed for special scenarios can extend the vertical rotation angle to -120°, which is suitable for being installed at high places to monitor the ground in all directions.
Rotation speed determines the response ability of the camera to track moving targets. The horizontal rotation speed is generally between 1°/s-300°/s, and the vertical rotation speed is between 1°/s-200°/s. The high-speed rotation mode is suitable for quickly switching monitoring areas. For example, when a suspicious person is found, the camera can switch from a panoramic picture to a target close-up in 1 second; while the low-speed rotation is suitable for detailed inspection. For example, in a cultural relics exhibition hall, the camera scans slowly at a speed of 5°/s to ensure that no details are missed.
Number of preset positions is a parameter to measure the automatic monitoring ability of the camera. Mainstream products support 128-512 preset positions. Users can set important monitoring positions (such as entrances and exits, shelves, equipment, etc.) as preset points, and make the camera switch between preset positions in a set order through one-key call or automatic cruise function. In large factory monitoring, 512 preset positions can cover all key equipment points, realizing unattended automatic inspection.
Imaging System Parameters: Guarantee of Image Quality and Color Restoration
The imaging system is the "heart" of the wall-mounted pan-tilt camera, and its performance parameters directly affect the color reproduction, dynamic range and low-light performance of the picture. Image sensor is the core component of the imaging system. At present, there are mainly two types: CMOS and CCD. Among them, CMOS sensors have become the mainstream choice due to their advantages of low power consumption and high integration. The larger the sensor size, the more light intake, and the less picture noise. Common sizes include 1/2.8 inches and 1/1.8 inches. Compared with 1/2.8 inches, the 1/1.8-inch sensor can increase the light sensitivity by 30% under the same light conditions, and the night is clearer.
Pixel resolution determines the detail presentation ability of the picture. At present, mainstream products have been upgraded from 2 million pixels (1080P) to 4 million pixels and 5 million pixels, and high-end models can reach 8 million pixels (4K) or higher. The picture details of a 5-megapixel camera are 2.5 times that of a 2-megapixel camera, and can present more details in the same picture. For example, in traffic monitoring, it can not only monitor the overall traffic flow at the intersection, but also clearly identify the vehicle information in each lane. It is worth noting that the resolution is proportional to the bandwidth and storage requirements. The code stream of an 8-megapixel camera is usually 4 times that of a 2-megapixel camera. When selecting, it is necessary to comprehensively consider the performance of the transmission network and storage equipment.
Low-light performance is a key indicator to measure the imaging quality of the camera in low-light environments, usually expressed by the minimum illumination parameter, in Lux. The minimum illumination of mainstream models can reach 0.01Lux (color mode) and 0.001Lux (black and white mode). Some products using starlight-level sensors can achieve clear monitoring in 0Lux environment (with infrared fill light). In night scenes without light sources, cameras with starlight-level night vision function can present color pictures under moonlight by amplifying the light-sensing ability of the sensor, while ordinary models need to switch to black and white mode.
Wide Dynamic Range (WDR) determines the performance of the camera in high-contrast light scenes. The parameter is usually in dB. Mainstream products support 120dB-150dB wide dynamic range. In backlight scenes (such as doorways, windows), high dynamic cameras can clearly present details in bright and dark areas at the same time, avoiding dark foreground or overexposed background. 150dB wide dynamic range can handle larger light contrast than 120dB, and is suitable for use in extreme light conditions such as sunrise and sunset, and strong light .
White balance adjustment function ensures that the camera can accurately restore the true color of objects in different light source environments, supporting automatic white balance and manual white balance adjustment. Automatic white balance can be adjusted in real time according to changes in ambient light, which is suitable for scenes where light changes frequently; manual white balance can fix parameters, which is suitable for indoor environments with stable light. Some high-end models support multi-area white balance calibration, which can handle mixed scenes of different light sources (such as incandescent lamps and natural light) in the same picture to ensure overall color consistency.
Intelligent Function Parameters: The Core of Improving Monitoring Efficiency
With the development of artificial intelligence technology, wall-mounted pan-tilt cameras have been upgraded from simple image acquisition equipment to intelligent analysis terminals, and their intelligent function parameters directly affect monitoring efficiency and response speed. Motion detection is the most basic intelligent function. By setting sensitivity (usually divided into 5-10 levels) and detection area, it can trigger an alarm when a moving target appears in the picture. Advanced motion detection supports filtering interference factors (such as shaking leaves, light changes) to reduce false alarms, which is suitable for outdoor scenes.
Human shape recognition function accurately recognizes human contours through AI algorithms. Parameters include recognition distance, recognition accuracy and response time. Mainstream products have a human shape recognition distance of 50m-100m, with an accuracy rate of over 95% and a response time of less than 0.5 seconds. In security scenarios, human shape recognition can ignore non-target objects such as animals and vehicles, and only alarm for human activities, greatly improving the effectiveness of alarms. Some models support human shape tracking. After recognizing a person, they can automatically control the pan-tilt to rotate to keep the target in the center of the picture, realizing continuous monitoring of moving people.
Vehicle recognition function is specially designed for traffic monitoring scenarios, which can recognize vehicle types (cars, trucks, motorcycles, etc.), license plate numbers, colors and other information. The recognition accuracy can reach more than 98% during the day and more than 90% at night. Supported license plate types include ordinary license plates, new energy license plates, Hong Kong and Macau license plates, etc., which are suitable for applications in parking lot entrances and exits, road checkpoints and other scenarios. Through linkage with the back-end system, functions such as blacklist vehicle early warning and traffic statistics can be realized.
Audio functions include sound pickup and audio analysis. The sound pickup distance is usually 5m-30m, supporting noise reduction processing, which can clearly capture dialogue sounds. The audio analysis function can recognize abnormal sounds (such as screams, glass breaking sounds), and cooperate with video for linkage alarm, which is suitable for unattended scenarios. Some models support two-way voice intercom, and through built-in microphones and speakers, realize remote intercom function, which plays an important role in dispelling suspicious persons and commanding the scene.
Behavior analysis is an advanced intelligent function that can recognize specific behaviors (such as loitering, running, crossing boundaries, gathering, etc.). Parameters include behavior judgment time (such as loitering time set to 5 seconds-300 seconds), judgment area, etc. In campus monitoring, cross-border detection can be used to prohibit students from entering dangerous areas; in shopping malls, gathering detection can warn of crowd congestion and evacuate passenger flow in advance. The accuracy rate of behavior analysis function is usually over 90%, and the false alarm rate is less than 5%, which can effectively reduce the workload of monitoring personnel.
Interface and Transmission Parameters: Ensuring Stable Data Transmission
The interface and transmission parameters of wall-mounted pan-tilt cameras determine their compatibility with back-end systems and data transmission stability. Network interface is usually a Gigabit Ethernet port (RJ45), supporting PoE power supply (802.3af/at standard), which can transmit data and power through a single network cable, simplifying installation and wiring. Some high-end models support optical fiber interfaces, which are suitable for long-distance transmission (over 100 meters) and can reduce signal attenuation in large park monitoring.
Wireless transmission parameters include supported WiFi standards (802.11ac/n/b/g), transmission rate and coverage range. The 802.11ac standard supports the 5GHz frequency band, with a transmission rate of up to 1200Mbps, suitable for 4K video wireless transmission; 802.11n supports the 2.4GHz frequency band, with a transmission rate of 300Mbps and a wider coverage range. The wireless transmission distance can reach 100 meters in an obstacle-free environment. In practical applications, affected by walls and interference, it is usually recommended to control it within 30 meters to ensure smooth video transmission.
Video encoding format affects video file size and image quality. Mainstream supports H.265+, H.264+, H.265, H.264 and other encodings. Compared with H.264+, H.265+ can save 50% of bandwidth and storage space under the same image quality, which is suitable for 4K video transmission and storage. It supports multi-code stream function (usually three-code stream), which can output videos with different resolutions (such as 4K, 1080P, D1) and code rates at the same time, meeting different needs such as local storage, remote preview, and mobile phone viewing.
Alarm interfaces include input interfaces and output interfaces, with the number usually being 1-4 inputs and 1-2 outputs. Alarm inputs can be connected to external sensors (such as infrared detectors, door magnetic switches), and alarm outputs can be connected to sound and light alarms, relays and other equipment to realize multi-device linkage. In the bank security system, the camera alarm output can be linked with the access control system to automatically lock the channel in case of abnormalities.
Installation and Environmental Parameters: Guarantee for Adapting to Different Scenarios
The installation and environmental parameters of wall-mounted pan-tilt cameras determine their applicable scenarios and service life, and directly affect the stability and maintenance cost of the equipment. The installation method is wall-mounted, supporting horizontal and vertical fine-tuning (usually ±5°) to ensure accurate installation angle. The material of the mounting bracket is usually aluminum alloy or stainless steel, with a load-bearing capacity of 3kg-10kg, which can be adapted to cameras of different weights. Some brackets have waterproof design, suitable for outdoor installation.
Protection level is a key parameter to measure the equipment's ability to adapt to the environment, expressed by IP code. Outdoor models usually support IP66 protection level, which can completely prevent dust intrusion and withstand strong water spray (such as heavy rain); indoor models are generally IP30 or IP44, suitable for dry and dust-free environments. The anti-riot level (usually IK10) indicates the impact resistance of the equipment. The IK10 level can withstand the impact of a 5kg heavy object falling from a height of 40cm, which is suitable for use in crowded places or scenes where collisions may occur.
Working temperature range determines the performance of the camera under extreme climate conditions. Outdoor models usually support -40℃ to +60℃, and can work normally in severe cold areas (such as winter in Northeast China) and high-temperature areas (such as summer in southern China); indoor models have a narrower working temperature range, generally 0℃ to +40℃. Some high-end models adopt wide-temperature design, ensuring stable operation in extreme temperatures of -50℃ to +70℃ through heating and heat dissipation systems.
Power parameters include power supply mode and power consumption. The mainstream power supply modes are DC12V or PoE (802.3af/at). PoE power supply can transmit power through network cables, simplifying wiring. The power consumption is usually 5W-10W in standby, and 15W-30W in operation (including pan-tilt rotation and infrared activation). PoE+ (802.3at) can provide more than 30W of power to meet the power demand of high-end models. Low-power models are suitable for scenarios with unstable power supply to reduce the risk of power failure.
Summary: Parameter Matching Scenario Requirements is the Key
The parameter characteristics of wall-mounted pan-tilt cameras cover optical performance, rotation system, imaging technology, intelligent functions, transmission interfaces and environmental adaptation. Different scenarios have significant differences in parameter requirements. In security monitoring scenarios, priority should be given to optical zoom multiple, night vision performance and intelligent recognition functions; in conference scenarios, emphasis should be placed on image quality resolution, wide dynamic range and audio effects; in outdoor monitoring, protection level and working temperature range are key considerations.
When choosing a wall-mounted pan-tilt camera, you should not blindly pursue high parameters, but match the parameters according to actual scenario requirements. For example, in a small conference room, a model with 20x optical zoom, 4K resolution, and IP44 protection can meet the needs; in large factory outdoor monitoring, a high-end model with more than 30x optical zoom, IP66 protection, and wide-temperature design is required. By deeply understanding the actual meaning of each parameter and selecting models according to scene characteristics, the performance advantages of wall-mounted pan-tilt cameras can be fully utilized to achieve efficient and reliable monitoring effects.
