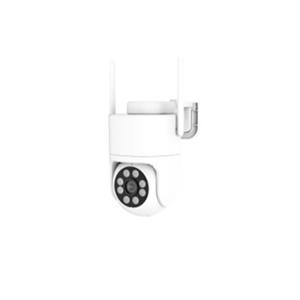

Smart WiFi Outdoor Camera with 4MP Clarity, Human Detection, and 355° Horizontal Rotation

Outdoor WiFi cameras need to cope with complex lighting environments such as strong light, backlighting, and rainy days. Their image parameters directly determine the ability to restore images, which is the core foundation for effective monitoring.

Resolution and Dynamic Range

Mainstream outdoor models have popularized 2K (2560×1440, 4 million pixels) resolution. Compared with 1080P, the detail presentation ability is nearly doubled, which can clearly capture license plate numbers or clothing textures 10 meters away. High-end products such as Ezviz C8W support 4K (3840×2160, 8 million pixels). With H.265+ encoding technology, they can achieve ultra-high-definition recording at a 12Mbps bit rate while reducing storage usage by 50%. Dynamic Range (DR) is a key indicator for outdoor models. The 120dB wide dynamic range technology (such as Hikvision DS-2CD3T46WD-I3) can handle both sunlit areas and shaded corners at the same time, avoiding the problem of "subject too dark and background overexposed" in backlit scenes. For example, in courtyard monitoring at noon, it can clearly capture the faces of visitors in strong light and present details in the shaded areas under the eaves.

Lens and Aperture Design

Outdoor camera lenses need to balance durability and optical performance, mostly using all-metal lens mounts and glass lens groups, with an impact resistance rating of IK10 (can withstand 10kg object impact). Focal length options are more flexible: a 2.8mm lens provides a 90° wide angle, suitable for monitoring the entire courtyard; a 6mm lens narrows the viewing angle to 50°, suitable for long-distance fixed-point monitoring (such as wall boundaries). Apertures generally adopt F1.4-F1.6 large apertures, which increase light intake by more than 40% compared with F2.0 of indoor models. In dusk or cloudy environments, the image can remain bright without supplementary lighting. Some models such as TP-LINK TL-IPC544HP are equipped with starlight-level sensors (minimum illumination of 0.001lux), which can still present color images in a moonlit environment (0.1lux), avoiding the black-and-white monotony of traditional infrared night vision.

Anti-Shake and Wide-Temperature Imaging

Outdoor environments are susceptible to wind and rain vibrations. Models supporting electronic image stabilization (EIS) (such as Dahua DH-IPC-HFW2433DM-I1) can compensate for image jitter through algorithms to ensure video fluency. Extreme temperature adaptability is also important. Industrial-grade outdoor cameras have an operating temperature range of -30℃ to 60℃ (such as Axis M3045-V). They can still maintain normal imaging in the cold winter of the north at minus 20℃ or the hot summer of the south under high-temperature exposure. The secret lies in the lens heating module, which can automatically eliminate frost and water mist to ensure the optical path is unobstructed.

Night Vision Parameters: Core of Security in Dark Environments

The high-risk periods of outdoor monitoring are concentrated at night. The night vision parameters of the camera need to balance coverage distance, concealment, and image details to cope with non-light or low-light scenarios.

Infrared Supplementary Lighting System

Infrared night vision is a basic configuration, and its performance depends on the power and layout of infrared lamps. Mainstream models are equipped with 8-12 Φ5mm infrared lamps, arranged in an array (such as Ezviz C5HC), with a night vision distance of 30-50 meters. In terms of wavelength selection, 940nm infrared lamps are more concealed than 850nm, with no red burst phenomenon at night (no visible red light near the lens), suitable for scenes requiring low-key monitoring (such as villa exteriors). Some high-end models adopt intelligent infrared adjustment technology, which can automatically switch power according to the target distance: when a person moving within 10 meters is detected, the infrared power is reduced to avoid overexposure of the image; for long-distance targets, the power is automatically increased to ensure clear details.

Full-Color Night Vision and Hybrid Supplementary Lighting

Breaking through the traditional infrared black-and-white limitation, full-color night vision is achieved through two technologies: one is white light supplementary lighting (LED warm light), such as the 4 Φ8mm warm light lamps of Xiaomi outdoor cameras, with a supplementary lighting distance of 15 meters, which can present color images at night and play a deterrent role; the other is starlight full-color technology, which can generate color images without supplementary lighting in a 0.01lux starlight environment through a large aperture and high-sensitivity sensor (such as Sony IMX307), suitable for community environments sensitive to light pollution. Hybrid supplementary lighting models (such as 360 outdoor dome cameras) can switch intelligently: the default infrared mode saves energy, and when a human figure is detected, the white light supplementary lighting is automatically turned on, balancing concealment and color details.

Night Vision Noise Reduction and Intelligent Switching

Night images are prone to noise. 2D/3D noise reduction algorithms can effectively filter noise: 2D noise reduction processes noise in a single frame of the image, while 3D noise reduction eliminates dynamic noise by comparing multiple frames of images, increasing the signal-to-noise ratio (SNR) of night images to more than 50dB. The intelligent night vision switching function can automatically adjust according to ambient light: when the ambient light is lower than 1lux, it automatically switches from color mode to infrared mode; when the light intensity rises to 3lux at dawn, it smoothly transitions back to color mode, avoiding image flicker caused by frequent switching.

Network Connection Parameters: Stable Transmission in Complex Environments

Outdoor cameras are usually installed on walls, eaves, etc. WiFi signals are susceptible to wall and electromagnetic interference. Their network parameters directly determine the fluency and reliability of remote monitoring.

Dual-Band WiFi and Anti-Interference Design

Supporting 2.4GHz/5GHz dual bands is a standard feature of outdoor models. The 5GHz band (802.11ac protocol) can reach a transmission rate of 867Mbps in an unobstructed environment, suitable for real-time upload of 4K videos; the 2.4GHz band has strong penetration ability and can maintain connection in multi-wall blocking scenarios. Some models such as Huawei HUAWEI CV70 adopt an independent signal amplification module, which increases the WiFi coverage distance by 30% compared with ordinary models. Combined with MIMO dual-antenna technology, it can maintain a stable connection in strong interference environments (such as near a substation).

Offline Cache and Traffic Control

Outdoor networks may be interrupted suddenly. Models supporting local cache (such as TP-LINK TL-IPC646-D4) can temporarily store the video during the offline period in the SD card and automatically upload it to the cloud after the network is restored to avoid data loss. The traffic control function allows users to set a bandwidth limit (such as 2Mbps) to prevent high-definition videos from occupying too much home network resources. For example, in 4K mode, the bit rate can be automatically adjusted to 8Mbps to ensure smooth remote preview without affecting other devices' internet access.

Wired Backup and Protocol Compatibility

To cope with extreme WiFi environments, most outdoor models retain a network cable interface to support wired connection as a backup. Industrial-grade models also support PoE power supply (802.3af standard), which transmits data and power through a single network cable, simplifying outdoor wiring (such as no need for additional power lines). In terms of protocol compatibility, it supports ONVIF, GB/T28181 and other standards, and can be seamlessly connected to third-party NVR systems, suitable for shop or factory scenarios with multi-camera networking.

Intelligent Security Parameters: Core Capability of Active Early Warning

Modern outdoor WiFi cameras have upgraded from passive video recording to active defense equipment. Their intelligent function parameters reflect the ability to identify and respond to abnormal events.

Human Detection and Regional Alert

Human recognition algorithms based on deep learning (such as Hikvision's DeepMind) can accurately distinguish between humans, animals, and vehicles, reducing the false alarm rate by 90%. It supports custom alert areas (such as wall edges, gate areas). When someone breaks into the preset area, it immediately triggers an acoustic and optical alarm (built-in 110dB siren + white light flash). Some models such as Ezviz C8HC can recognize human behavior characteristics, distinguish between "normal passing" and "lingering" (more than 10 seconds), and only push alarms for the latter to reduce invalid notifications.

Vehicle Recognition and Abnormal Behavior Analysis

High-end models have license plate recognition functions (supporting blue plates, yellow plates, new energy license plates) and can record incoming and outgoing vehicle information and generate reports. Abnormal behavior analysis technology can identify dangerous actions such as "climbing over walls" and "violent shaking". For example, when the camera detects someone climbing over the railing, it judges the body posture through AI algorithms, triggers a high-level alarm, and links with other devices (such as turning on courtyard lights).

Acoustic-Optical Deterrence and Two-Way Intercom

It has a built-in high-power speaker (3W) and microphone, supporting remote intercom function, with a sound pickup distance of up to 10 meters (with noise reduction processing). When an abnormality is detected, it can automatically play preset voices (such as "You have entered the monitoring area") and flash white lights to deter intruders. Users can also talk in real-time through the APP, such as saying "Wait a minute, I'll open the door right away" to visitors at the door, realizing remote interaction.

Environmental Protection Parameters: Key Indicators of Outdoor Durability

Outdoor cameras need to withstand extreme environmental tests such as wind, rain, sand, dust, high temperature, and low temperature. Their protection parameters directly determine their service life and stability.

Waterproof and Dustproof Rating

IP66 is the basic requirement for outdoor models, which means complete dustproof and can withstand strong water spray (such as heavy rain). Higher-grade IP67 models (such as Axis Q6045-E) can be immersed in water for a short time (30 minutes at 1-meter water depth), suitable for installation in low-lying and easy-to-waterlogging areas. Some special models pass NEMA 4X certification, which can resist acid and alkali corrosion (such as coastal salt spray environments). The shell is made of 316 stainless steel, which has much better corrosion resistance than ordinary aluminum alloys.

Lightning Protection and Surge Protection

Outdoor installation is susceptible to lightning strikes. Models supporting lightning protection level ≥2kV (such as Dahua DH-IPC-HFW1230M-I1) can withstand induced lightning strikes, and the power interface and network interface are equipped with surge protection circuits. In areas with frequent thunderstorms, it is recommended to choose products with three-level lightning protection design, which reduces the probability of lightning damage to 0.1% per year.

UV Resistance and Weather Resistance

The shell is made of UV-resistant materials (such as PC+ABS alloy). After 1000 hours of xenon lamp aging test (simulating 5 years of outdoor exposure), there is no cracking or discoloration. The sealing ring uses high and low-temperature resistant silica gel (no deformation at -40℃-80℃) to ensure long-term waterproof performance. For example, in the high-temperature and high-humidity environment in Hainan, the camera can maintain more than 5 years of sealing reliability.

Storage and Power Supply Parameters: Basic Guarantee for Stable Operation

The particularity of outdoor scenes requires cameras to have higher flexibility and reliability in storage and power supply.

Multiple Storage Solutions

Local Storage: Supports Micro SD cards (up to 256GB) and network video recorders (NVR). The SD card uses industrial-grade chips, resistant to -40℃-85℃ temperature, with a mean time between failures (MTBF) of 100,000 hours. Some models such as TP-LINK TL-IPC534HP support SD card encryption to prevent data leakage after the memory card is stolen.

Cloud Storage: Provides bank-level encrypted cloud services, supporting 7-day/30-day cyclic video recording. Videos are encrypted with AES-256 before uploading to ensure privacy and security. Some brands (such as Ezviz) support edge computing. After the camera identifies abnormal events locally, only key fragments are uploaded to the cloud, saving traffic and storage space.

Flexible Power Supply Methods

DC Power Supply: Mainstream uses DC 12V/2A adapters, with cable lengths up to 5 meters, meeting outdoor wiring needs. Some models support wide voltage input (DC 9V-24V) to adapt to different power environments.

PoE Power Supply: 802.3af standard PoE models are powered by network cables, with a transmission distance of 100 meters, suitable for installation positions without nearby power sources (such as telephone poles).

Solar Power Supply: Models equipped with 10W solar panels and 5000mAh lithium batteries (such as Reolink Argus PT) can realize wire-free installation and can operate for 24 hours under average daily 4-hour light conditions.

Installation and Expansion Parameters: Adapting to Complex Outdoor Scenes

Outdoor cameras have diverse installation environments, and their installation methods and expansion capabilities determine deployment flexibility.

Installation Methods and Adjustment Range

It supports wall mounting, ceiling mounting, and pole mounting (diameter 50-100mm). The accessories include stainless steel brackets and expansion screws, with a wind resistance rating of level 12 (can resist 34m/s strong wind). The lens adjustment angle is more flexible: the horizontal rotation angle can reach 355°, and the vertical rotation is -15°-90°. Combined with an electric pan-tilt (such as Ezviz C8C), it can be remotely controlled to turn through the APP to achieve panoramic monitoring. Some models are equipped with magnetic bases, which can be quickly installed on metal surfaces, suitable for temporary monitoring scenarios.

Expansion Interfaces and Linkage Capabilities

Reserved alarm input/output interfaces can be connected to infrared radiation, acoustic-optical alarms, and other equipment to realize multi-device linkage. For example, when the camera detects an abnormality, it automatically triggers an external alarm to sound. It supports WiFi linkage with smart home devices, such as linking with smart switches to turn on lights and linking with curtain motors to close sunshades, building a comprehensive security system.

Summary

The parameter design of WiFi outdoor cameras needs to focus on the three core needs of "all-weather, high reliability, and intelligent early warning": image parameters ensure detail restoration under complex light, night vision parameters guarantee monitoring capabilities in dark environments, network parameters solve the problem of unstable outdoor signals, protection parameters determine long-term durability, and intelligent functions upgrade passive recording to active defense. When choosing, users need to comprehensively consider factors such as installation location (courtyard/wall/roof), monitoring distance (near/mid/far), and environmental characteristics (rainy/high temperature/thunderstorm). For example, IP67+316 stainless steel models are preferred for seaside scenes, and products with 6mm focal length +4K resolution are emphasized for long-distance monitoring. Only through scientific matching of parameters can a truly reliable outdoor security barrier be built.
