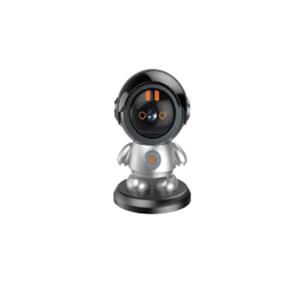

WiFi-Connected Robot PT Camera For Home Surveillance With Human Detection And One-Touch Call
In the field of intelligent security monitoring, the Robot PT Camera (Robot Pan-Tilt Camera) is gradually becoming a core security device in home, commercial, and industrial scenarios due to its flexible mobility, precise pan-tilt control, and powerful intelligent interaction capabilities. Compared with traditional fixed cameras or ordinary pan-tilt cameras, it breaks through spatial limitations, realizing a dual-mode of "active patrol + fixed-point monitoring." By integrating robot mobility technology with high-definition camera systems, it builds a more three-dimensional and intelligent security protection network. The following is an in-depth analysis from dimensions such as core parameters, functional features, and applicable scenarios to fully demonstrate the technical details and practical value of such products.
I. Core Imaging System Parameters
The imaging performance of the Robot PT Camera directly determines the quality of monitoring images and the ability to capture details. Its core parameters focus on three dimensions: "high-definition resolution, flexible lens configuration, and all-weather imaging," ensuring high-quality video output in various lighting and scene conditions.
(1) Resolution and Image Quality Engine
Mainstream Resolution Configurations
4K Ultra-HD (3840×2160): A standard feature of high-end models, the 8-megapixel sensor can clearly identify details such as facial pores and object textures within 10 meters. For example, in warehouse scenarios, it can read tiny text on shelf labels; in home scenarios, it can capture subtle movements of children playing, providing precise images for remote care. 4K videos use H.265 encoding, occupying approximately 4GB of storage per hour. Combined with intelligent dynamic bitrate technology, the bitrate automatically reduces to 1Mbps when the image is static, saving storage space.
2K HD (2560×1440): The main configuration of mid-range models, the 4-megapixel sensor can clearly recognize facial features and object contours within 5 meters, meeting forensic needs in most scenarios. For instance, in offices, it can record hand movements of personnel operating computers; in stores, it can capture transaction details at cash registers. With H.265 encoding, it occupies about 2GB of storage per hour, balancing image quality and storage costs.
1080P Full HD (1920×1080): A configuration for entry-level models, the 2-megapixel resolution is suitable for large-scale monitoring with low detail requirements, such as conference room panoramas and corridor passages. Its advantage lies in low bandwidth demand (stable 1Mbps for smooth transmission), making it suitable for scenarios with limited network conditions.
Image Quality Enhancement Technologies
Starlight Night Vision: Equipped with a 1/1.8-inch large-format CMOS sensor and an F1.6 large aperture, combined with 8 940nm red-light-free infrared LEDs, it achieves color imaging under ultra-low illumination of 0.005lux. In moonlight environments, it can present color images without fill light, avoiding black-and-white blurriness in infrared mode, making it particularly suitable for nighttime baby room care or villa courtyard monitoring.
Wide Dynamic Range (WDR): The 120dB dynamic range, combined with HDR algorithms, can retain details in both strong light and shadow areas simultaneously. For example, in backlit doorway scenarios, it can clearly capture the faces of visitors in sunlight outside the door and the arrangement of items in the indoor entrance, solving the problem of "overexposure or underexposure" common in traditional cameras.
3D Noise Reduction and Distortion Correction: Reduces image noise through multi-frame synthesis technology, improving the signal-to-noise ratio by 40% in low-light environments; fisheye lens models are equipped with intelligent distortion correction algorithms, controlling edge distortion of 180° panoramic images within 5% to ensure normal object proportions in monitoring images.
II. Robot Mobility and Pan-Tilt Control Parameters
The core competitiveness of the Robot PT Camera lies in "freedom of movement + precise steering." The parameters of its moving mechanism and pan-tilt system directly determine the monitoring coverage and operational flexibility.
(1) Mobility Performance Parameters
Drive Modes and Battery Life
Wheeled Drive: Mainstream models adopt a dual-wheel differential + universal wheel design, with drive wheels 50-70mm in diameter, suitable for common surfaces such as wooden floors, tiles, and short-pile carpets. The moving speed can reach 0.3-0.5m/s, with a climbing capacity of ≤15°, easily crossing 2cm-high thresholds or carpet edges, making it suitable for flat-surface scenarios such as homes and offices.
Tracked Drive: Industrial-grade models use rubber tracks with a large ground contact area, capable of traveling on complex terrains such as concrete floors and gravel roads, with a climbing capacity of ≤30° and obstacle-crossing height of 5cm, suitable for industrial scenarios such as factories and warehouses.
Battery Life: Equipped with a 5000-10000mAh lithium battery, wheeled models have a battery life of 6-12 hours in normal mode and a standby time of 30-50 hours; tracked models, due to higher power consumption, have a battery life of 4-8 hours. They support Type-C fast charging (full charge in 2 hours) and automatic recharging function—when the power is below 20%, they automatically return to the charging dock to ensure uninterrupted monitoring.
Positioning and Navigation Accuracy
SLAM Laser Navigation: Equipped with a 120° field-of-view lidar with a scanning frequency of 10Hz, the mapping accuracy reaches ±5cm, enabling real-time environment mapping and optimal patrol path planning. It supports virtual wall settings (e.g., prohibiting entry into bedrooms), with a navigation obstacle avoidance response time of ≤0.5 seconds, capable of identifying small obstacles such as table legs and slippers and bypassing them.
Visual Navigation Assistance: Collects environmental feature points through the camera and fuses them with laser maps for positioning, improving positioning stability in strong light or complex texture environments, with positioning errors controlled within ±10cm to ensure patrol routes do not deviate.
Multi-Point Cruising and Fixed-Point : Supports preset 10-30 cruising points, with sequential or random patrol modes, and the switching time between adjacent cruising points is ≤3 seconds. In key areas (e.g., cash registers), "fixed-point " can be set—when an abnormality is triggered, the image automatically zooms in to track the target.
(2) Pan-Tilt Control Parameters
Rotation Angle and Speed
Horizontal rotation angle of 355°, vertical rotation angle of -15° to 90°, achieving all-round, dead-angle-free monitoring. The horizontal rotation speed can reach 60°/s, and the vertical speed is 30°/s, with a response delay of ≤300ms during remote control, enabling rapid tracking of moving targets (e.g., running pets or intruders).
Supports a "one-click reset" function—regardless of the current angle, it can instantly return to the preset initial angle, facilitating quick switching of monitoring perspectives.
Lens Zoom Capability
Optical Zoom: High-end models are equipped with 2-10x optical zoom lenses; for example, 2x optical zoom can pull objects 10 meters away to a 5-meter perspective without losing detail clarity, suitable for identifying distant license plates or slogans.
Digital Zoom: Combined with optical zoom, it supports 4-16x digital zoom—on the basis of 4K resolution, 16x zoom still maintains 720P image quality, meeting the needs of long-distance detail observation (e.g., monitoring equipment operation status in factory areas).
II. Network Connection and Transmission Parameters
Stable network connection is the foundation for the Robot PT Camera to realize remote monitoring and intelligent interaction, and its network parameters directly affect real-time performance and reliability.
(1) Wireless Connection Performance
WiFi Protocols and Frequency Bands
Supports WiFi 6 (802.11ax) protocol, compatible with WiFi 5/4, with dual-band (2.4GHz+5GHz) concurrency. The 5GHz band has a theoretical rate of up to 1200Mbps, with a bandwidth usage of only 8-10Mbps when transmitting 4K videos, and the delay is controlled within 200ms; the 2.4GHz band has strong penetration capability, maintaining stable connection even through 3 walls, suitable for large apartments or multi-story buildings.
Equipped with 2 high-gain omnidirectional antennas (gain 5dBi), supporting MIMO technology, the throughput increases by 50% in multi-device networking environments, avoiding image freezing caused by network congestion.
Network Enhancement Technologies
Seamless Roaming: Supports 802.11k/v/r protocols, automatically switching to the AP with stronger signals in multi-router coverage areas, with video interruption ≤1 second during switching, ensuring smooth images during mobile patrols.
4G/5G Module (Optional): Industrial-grade models can be connected to external 4G/5G modules, supporting full network connectivity. In WiFi-free environments (e.g., outdoor construction sites, remote factory areas), network connection is achieved through SIM cards, with upload speeds of 10-50Mbps, meeting high-definition video transmission needs.
Local Caching and Breakpoint Resume: When the network is interrupted, videos are automatically stored in the local 16-64GB eMMC flash memory; after the network is restored, they are automatically uploaded to the cloud or transferred to the mobile phone to avoid data loss.
(2) Data Transmission and Interaction
Two-Way Voice Intercom
Built-in omnidirectional microphone (pickup distance 5-8 meters) and 3W speaker (maximum volume 100dB), supporting echo cancellation and noise suppression technologies, with call clarity close to that of mobile phones. It can realize remote comfort for babies (playing lullabies), scold intruders, or real-time communication with family members (e.g., "Leave the courier at the door").
Multi-Device Access and Permission Management
Supports 10 devices to view real-time videos online simultaneously. Through the APP, three-level permissions can be set: administrator (all operation permissions), family members (viewing and intercom), and visitors (temporary viewing only) to protect privacy and security.
Supports RTSP protocol output, which can be connected to third-party platforms such as NVR and video conferencing systems to meet the centralized monitoring needs of commercial or industrial scenarios.
III. Intelligent Function and Interaction Parameters
The "intelligence" of the Robot PT Camera is reflected in active identification, autonomous decision-making, and humanized interaction. Its intelligent parameters determine security efficiency and user experience.
(1) AI Recognition and Alarm System
Multi-Target Recognition Capability
Human Shape Detection: Adopts deep learning algorithms with a 98% accuracy rate in recognizing human contours, distinguishing humans from animals and objects, effectively filtering false alarms such as pet running and curtain shaking. The false alarm rate is 90% lower than that of traditional PIR detection.
Face Recognition: Supports local storage of 500 face databases with a recognition speed of ≤0.5 seconds, capable of marking "family members," "strangers," and "blacklists." When a blacklist person is detected, it immediately triggers a high-decibel alarm (110dB) and pushes a reminder.
Abnormal Behavior Recognition: Supports regional intrusion, boundary crossing detection, loitering alarm (with adjustable thresholds of 5-300 seconds), and item left/moved detection (e.g., monitoring whether shelf goods are moved), suitable for store anti-theft or office security management.
Alarm Linkage Methods
When an alarm is triggered, it automatically pushes APP messages (with captured images and short videos), local sound and light alarms (110dB buzzer + red flashing light), and can link with smart devices (e.g., turning on indoor lights, locking doors and windows).
Supports the "pre-alarm video recording" function—the video 10 seconds before and 30 seconds after the alarm is automatically encrypted and stored to ensure complete key evidence.
(2) Autonomous Patrol and Scene Modes
Intelligent Patrol Planning
Custom patrol plans can be set by time (e.g., patrol once per hour from 9:00-18:00 on weekdays) or by area (intensive patrol in key areas). The patrol route automatically avoids obstacles, and after completion, it automatically returns to the charging dock.
Supports "follow mode"—through visual recognition, it follows designated personnel (e.g., the elderly or children) to monitor their activity status in real time, suitable for home care or following workers in factories.
Voice Interaction and Remote Control
Built-in AI voice assistant, supporting offline wake-up (e.g., "Hello, robot"), which can control pan-tilt rotation, start patrols, play music, etc., through voice. It supports Mandarin and multiple dialects with a recognition accuracy rate of 95%.
The mobile APP supports virtual joystick control for movement, with operational smoothness comparable to game controllers, and provides "quick operation buttons" (e.g., one-click patrol, one-click recharge, one-click intercom) to simplify remote control steps.
IV. Storage and Security Parameters
The Robot PT Camera involves a large amount of monitoring data, and its storage schemes and security mechanisms are directly related to privacy protection and evidence validity.
(1) Storage Schemes
Local Storage
Built-in 16-128GB eMMC flash memory, supporting Micro SD card expansion (maximum 256GB) and external hard drives (for some models). Using H.265+ encoding, 128GB local storage can save approximately 30 hours of 4K videos or 80 hours of 1080P videos, supporting cyclic coverage and manual locking of important videos (locked videos will not be overwritten).
Cloud Storage and Backup
Provides cloud storage services—the free version supports 7-day cyclic storage, and the paid version (10-30 yuan/month) supports 30-90-day storage, using bank-level AES-256 encryption for transmission and storage to ensure data is not leaked.
Supports "local + cloud" dual backup—alarm videos are automatically synchronized to the cloud to prevent data loss after device theft. Cloud videos can be downloaded and shared at any time (with permission verification).
(2) Privacy Protection Mechanisms
Physical Privacy Shielding: Supports lens physical shielding function (motor-driven baffle closes the lens). In the shielded state, the camera is completely inactive to protect user privacy (e.g., when used in bedrooms).
Data Encryption and Permission Management: All local videos are encrypted and stored (requiring administrator password for decryption). Cloud data transmission uses HTTPS encryption, and device access requires APP verification codes or face recognition to prevent unauthorized access.
V. Installation and Protection Parameters
The installation convenience and environmental adaptability of the Robot PT Camera determine its applicable range, and protection parameters ensure stable operation in complex environments.
(1) Installation and Deployment
Out-of-the-Box Design: No professional installation is required—after unpacking, connect to WiFi and complete APP pairing (supporting QR code network configuration) for use, taking approximately 5 minutes, suitable for ordinary users.
Charging Dock Installation: The charging dock supports wall-mounted or desktop placement, equipped with an infrared guidance device. The robot's homing accuracy is ±3cm, enabling accurate docking for charging even in dark environments.
(2) Protection Level and Environmental Adaptation
Protection Level: Indoor models have an IPX4 protection level (splash-proof), coping with daily splashes; outdoor models reach IP65 (dustproof and waterproof), working normally in rainy days, suitable for outdoor scenarios such as courtyards and parking lots.
Operating Temperature and Humidity: Operating temperature ranges from -20℃ to 50℃, and humidity ranges from 5% to 95% (no condensation), ensuring stable operation in cold northern regions or humid southern environments, with a battery capacity retention rate of ≥70% at low temperatures.
Shock Resistance and Durability: The body is made of ABS+PC engineering plastic, with some key parts (e.g., drive wheels, camera housing) using aluminum alloy, passing 1-meter drop tests to ensure no damage from daily collisions or minor drops.
