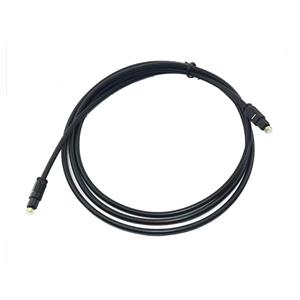

Types of audio patch cables Interface types audio patch cables UV-resistant fiber optic patch cord

Audio Jumper (audio patch cable) is the "neural network" connecting various devices in audio systems, widely used in recording studios, stage performances, radio and television, home audio-visual setups, and other scenarios. It is responsible for accurately transmitting audio signals between microphones, mixers, power amplifiers, speakers, effectors, and other equipment. As a key carrier of signal transmission, its parameter design directly affects sound quality clarity, dynamic range, anti-interference ability, and system stability. The following is a detailed analysis of the parameter characteristics of audio jumpers exceeding 2,500 words, covering six dimensions: physical specifications, electrical performance, interface characteristics, structural design, environmental adaptability, and scenario compatibility.

I. Physical Specification Parameters: The Material Foundation Determining Basic Performance

The physical specifications of audio jumpers form the basis of their functionality, including material, size, and weight, which directly influence signal transmission efficiency and durability.

1. Conductor Material and Structure

The conductor is the core carrier of audio signal transmission, and its material and structure determine conductivity, signal integrity, and oxidation resistance:

Core Materials:

Oxygen-Free Copper (OFC): With a purity of ≥99.95% and oxygen content ≤0.003%, it offers high conductivity (≥100% IACS) and low resistance (resistivity ≤0.017241Ω·mm²/m at 20°C), making it the mainstream choice. High-purity OFC reduces the "skin effect" (where high-frequency signals concentrate on the conductor surface) during signal transmission, minimizing high-frequency loss—especially suitable for high-dynamic signals such as vocals and musical instruments.

Ohno Continuous Casting (OCC) Copper: Achieves a single-crystal structure through continuous casting, eliminating electron scattering at grain boundaries. Its conductivity is 5%-10% higher than OFC, enabling smoother signal transmission with lower distortion.

Silver/Gold-Plated Conductors: A 0.5-3μm layer of silver or gold is plated on copper conductors. Silver (105% IACS) enhances high-frequency transmission, while gold’s exceptional oxidation resistance (10 times that of silver) suits humid environments (e.g., stage performances). However, gold is costly and is primarily used for connector contacts rather than entire cables.

Alloy Conductors: Such as copper-clad aluminum (CCA) or copper-silver alloys, these are cheaper but have only 60%-80% the conductivity of OFC, resulting in significant signal loss. They are limited to low-end consumer scenarios (e.g., temporary home audio connections).

Conductor Structures:

Stranded: Composed of dozens to hundreds of fine copper wires (0.05-0.1mm diameter), offering excellent flexibility (bend radius as low as 5x the cable diameter) and resistance to repeated bending (≥10,000 bends without breakage). Ideal for stage setups or tight spaces, e.g., professional stage jumpers often use 24 strands × 0.1mm for a balance of flexibility and strength.

Solid: A single thick copper wire (0.5-2mm diameter) provides stable signal paths with slightly lower loss than stranded designs but has poor flexibility (bend radius ≥10x diameter) and is prone to breakage. Used only for fixed installations (e.g., short cabinet connections).

2. Cable Size and Weight

Size and weight balance transmission performance, flexibility, and portability:

Wire Gauge: Expressed in AWG or mm, common sizes range from 20AWG (0.51mm²) to 28AWG (0.08mm²). Larger gauges (smaller AWG numbers) have lower resistance (20AWG: ~0.03Ω/m; 28AWG: ~0.2Ω/m) and suit long distances (≥10m). Smaller gauges are lighter (28AWG: ≤10g/m) for dense setups (e.g., mixer to effects units within 1m).

Outer Diameter: 3-10mm including insulation and shielding. Thin cables (3-5mm) fit tight spaces but have thinner shielding; thick cables (6-10mm) offer enhanced shielding (e.g., dual-layer) for high-interference environments like outdoor events.

Length Options: 0.3m, 0.5m, 1m, 1.5m, 3m, 5m, up to 50m (with amplification). Short jumpers (≤1m) have negligible loss, while long jumpers (≥5m) require impedance matching and robust shielding to avoid attenuation or noise.

3. Insulation and Jacket Materials

Insulation isolates conductors from shielding, while jackets protect the entire structure, affecting temperature resistance, flexibility, and aging resistance:

Insulation Materials:

PVC: Low-cost, operating at -15°C to +60°C with moderate flexibility. Suitable for indoor use but hardens in cold and may degrade over time.

TPE: Withstands -40°C to +80°C, offering 3x better aging resistance than PVC. Oil and chemical-resistant, it is ideal for stages and outdoor use (e.g., Pro Co stage jumpers).

PTFE: Operates at -200°C to +260°C with excellent insulation (dielectric constant 2.1) and water resistance. Used in high-temperature equipment or precision studios but is costly and rigid.

Jacket Materials: Mostly PVC or TPE, with high-end options featuring braided reinforcements (e.g., nylon) for 50% higher tensile strength (withstanding 50N without rupture) and enhanced abrasion resistance (≥1,000 scrapes).

II. Electrical Performance Parameters: Core Determinants of Sound Quality and Transmission Stability

Electrical performance is critical for signal quality, encompassing impedance, loss, and interference resistance.

1. Impedance Characteristics

Impedance (voltage-to-current ratio) determines signal reflection and power transfer efficiency:

Nominal Impedance:

Balanced cables (e.g., XLR) typically have 600Ω impedance, matching professional equipment to minimize reflection (return loss ≥20dB) for stable long-distance transmission (≥100m).

Unbalanced cables (e.g., RCA, TS) use 50Ω, 75Ω, or high impedance (≥10kΩ). 50/75Ω suits RF signals, while high-impedance cables are prone to interference, limited to short distances (≤3m) for low-sensitivity devices (e.g., guitar to effects).

Impedance Consistency: Quality jumpers have ≤±10% deviation (e.g., 540-660Ω for 600Ω cables) and ≤50Ω variation across 20Hz-20kHz, avoiding distortion (THD ≤0.01%).

2. Transmission Loss and Frequency Response

Loss measures signal attenuation, while frequency response reflects consistency across frequencies, together determining sound fidelity:

Transmission Loss:  at 20kHz has ≤0.05dB/m loss, with ≤0.5dB over 10m (inaudible). Poor CCA cables lose 0.2dB/m, attenuating 2dB over 10m and losing high-frequency details (e.g., violin overtones).

Frequency Response: Professional jumpers cover 20Hz-20kHz, with high-end models extending to 10Hz-100kHz. Flatness (±0.5dB across 20Hz-20kHz) prevents uneven frequency reproduction (e.g., weak bass).

3. Capacitance and Inductance

Capacitance and inductance affect phase and high-frequency response, critical for high fidelity:

Capacitance: ≤60pF/m (balanced) or ≤100pF/m (unbalanced). Excess capacitance increases high-frequency reactance, attenuating 10kHz+ signals (>3dB) and causing dry sound. Quality stranded cables with 5-8 twists/cm achieve 30-50pF/m.

Inductance: ≤0.5μH/m. High inductance slows low-frequency response (e.g., bass delay >1ms). Stranded cables reduce inductance by 30% via counter-twisting, outperforming solid conductors.

4. Signal-to-Noise Ratio (SNR) and Interference Resistance

SNR compares signal to noise, while interference resistance ensures performance in noisy environments:

SNR: Professional balanced jumpers have ≥90dB (A-weighted), making noise inaudible. Unbalanced cables typically have ≤75dB SNR, prone to hum.

Shielding Effectiveness:

Foil Shielding: 100% coverage with ≥80dB shielding for >10MHz interference but poor durability, used in fixed setups.

Braided Shielding: 75%-95% coverage (95% for pro use) offers ≥60dB shielding against 50/60Hz noise, with good flexibility for stages.

Dual Shielding (Foil + Braid): ≥100dB shielding against all frequencies, ideal for studios and broadcast (e.g., Mogami studio jumpers).

Grounding: Balanced cables use "twisted pairs + single-ended shielding ground" to eliminate ground loop noise (50Hz hum reduced by ≥20dB), outperforming unbalanced designs.

III. Interface and Connection Characteristics: Determinants of Compatibility and Signal Integrity

Interfaces bridge cables and devices, with their type, material, and craftsmanship affecting reliability.

1. Interface Types and Specifications

Interfaces must match equipment to avoid signal loss:

Balanced Interfaces:

XLR (Cannon): 3-pin (most common) or 5-pin, used for balanced signals (mics, mixers). Gold/silver-plated contacts (0.5-2μm) have ≤20mΩ resistance and ≥10,000 insertion cycles. Pin 1 (ground), 2 (hot), 3 (cold) use differential transmission to cancel noise.

TRS (6.35mm/3.5mm): 6.35mm for instruments/effects; 3.5mm for portable devices (e.g., recorders). Metal-shielded, they support 600Ω balanced transmission.

Unbalanced Interfaces:

RCA (Phono): For home audio (CD players, amps). Gold-plated center pins have ≤50mΩ resistance but poor shielding, limited to ≤2m in low-noise environments.

TS (6.35mm/3.5mm): 6.35mm for guitars/basses; 3.5mm for consumer devices. Prone to interference, used for ≤1m connections.

Special Interfaces: Speakon (high-current speaker connections), BNC (broadcast), USB-C (digital audio). Speakon supports ≥15A with locking mechanisms to prevent disconnection.

2. Connector Craftsmanship and Durability

Craftsmanship determines contact reliability and lifespan:

Contact Materials:

Gold-Plated Contacts: 500-hour salt spray resistance with stable ≤10mΩ resistance, ideal for humid stages.

Silver-Plated Contacts: Higher conductivity than gold but oxidize after 200-hour salt spray, requiring regular cleaning for studios.

Copper Contacts: Low-cost but prone to oxidation, used only in budget jumpers.

Structural Reinforcements:

Molded Strain Relief: 15mm+ PVC/TPE molding at connector-cable junctions withstands 5,000 90° bends without breakage.

Metal Housings: Zinc/aluminum alloy shells resist ≥100N pressure (10kg weight) and enhance shielding (10dB improvement).

Locking Mechanisms: XLR’s spring lock (≥5N retention) prevents accidental disconnection; Speakon’s twist lock (≥10N retention) suits high-current scenarios.

IV. Structural Design Features: Determinants of Durability and Usability

Optimal design enhances damage resistance, flexibility, and longevity.

1. Cable Structure Optimization

Twisting: Balanced cables use "twisted pairs" (5-10mm pitch) to reduce EMI by 30% vs. parallel lines. Multi-core cables use "star" or "bundle twisting" for ≥60dB crosstalk attenuation.

Fillers and Separation: Internal cotton/nylon fillers boost tensile strength to ≥100N (10kg load). PE separators reduce capacitance by 10%-20% for better high-frequency response.

2. Shielding Design

Braid Density: 30°-45° braid angles with 95% coverage (≥40 wires/cm) provide ≥90dB shielding for 1MHz interference. Basic 70% coverage offers ≤60dB, prone to mobile/WiFi interference.

Foil Shielding: Foil with ≥5mm overlap ensures no gaps. "Foil + Mylar" composites withstand ≥3,000 bends, preventing foil rupture.

3. Stress Relief Design

Strain Relief: Connector roots use "tapered" or "corrugated" designs with ≥15mm bend radius, enduring 10,000 90° bends with ≤10% resistance change.

Reinforced Soldering: "Spot welding + tin dipping" creates ≥0.5mm² solder joints with ≥30N tensile strength (3kg load), 50% more reliable than crimping.

V. Environmental Adaptability Parameters: Determinants of Stability in Diverse Scenarios

Jumpers must perform reliably across environments, with parameters ensuring durability.

1. Temperature and Humidity Resistance

Temperature Range:

Consumer: -10°C to +50°C for homes/offices.

Professional: -40°C to +80°C (TPE jacket + heat-resistant conductors) for outdoor/stage use, with ≤5% performance change.

Industrial: -55°C to +125°C (PTFE insulation) for extreme environments (e.g., vehicle audio).

Humidity Resistance: Insulation resistance ≥100MΩ (500V DC) across 5%-95% RH (no condensation), with ≤10μA leakage to avoid noise.

2. Mechanical Durability

Tensile Strength: Professional jumpers withstand ≥100N (10kg load) with ≤5% resistance change; consumer models handle 50N.

Vibration/Shock Resistance: Survive 10-2000Hz vibration (10g acceleration) and 1m drops (10x) without damage or loose connections.

Bend Life: ≥10,000 180° bends (≥15mm radius) with ≤20% resistance change, exceeding consumer 3,000-cycle standards.

3. Chemical and Corrosion Resistance

Chemical Resistance: Jackets resist swelling/cracking in alcohol, oil, or cleaners (≤5% volume change after 24-hour immersion). Contacts withstand 240-hour salt spray with ≤30% resistance change.

UV Resistance: Outdoor jumpers with UV stabilizers endure 1,000 hours of UV exposure (1 year outdoor) with ≤10% hardness change, maintaining flexibility.

VI. Application-Specific Adaptability: Parameter Differences Across Scenarios

Parameter selection depends on usage, with distinct requirements for each scenario.

1. Recording Studios and Professional Production

Needs: High fidelity, low noise, wide frequency response.

Recommended Parameters: OCC  (≥99.99% purity), dual shielding (foil + 95% braid), XLR/TRS interfaces, ≤50pF/m capacitance, ≤0.03dB/m loss, ≥100dB SNR.

Applications: Mic-to-mixer, mixer-to-effects, mastering setups, ensuring distortion-free, noise-free signals.

2. Live Stages and Sound Reinforcement

Needs: Interference resistance, durability, secure connections.

Recommended Parameters: OFC conductors, TPE jacket, XLR/Speakon (locked), 95% braid shielding, ≥100N tensile strength, ≥10,000 insertion cycles.

Applications: Stage mics, amp-to-speaker, effects chains, resisting lighting/RF interference and rough handling.

3. Home Audio and Consumer Electronics

Needs: Cost-effectiveness, ease of use, compatibility.

Recommended Parameters: OFC (99.95% purity), PVC jacket, RCA/TRS (gold-plated), basic shielding (foil/70% braid), 1-3m length.

Applications: CD-to-amp, TV-to-speaker, headphone connections, balancing cost and sound quality.

4. Broadcasting and Radio/Television

Needs: Reliability, long-distance transmission.

Recommended Parameters: 600Ω balanced, ≤40pF/m capacitance, dual shielding + single-ended ground, XLR/BNC, ≤0.05dB/m loss (100m).

Applications: Studio-to-transmitter links, live broadcast setups, ensuring stable long-distance transmission.

VII. Additional Features and Buying Guide

1. Practical Features

Labeling: Printed length, gauge, and color-coding (red/blue/green) aid cable management in multi-channel setups.

Storage: Flexible for coiling (≥10x diameter), with included bags/ties for portability.

Certifications: RoHS/CE compliance ensures safety, critical for enclosed spaces (e.g., studios).

2. Key Buying Criteria

Match Interfaces: Use balanced jumpers for balanced equipment to avoid noise from "balanced-to-unbalanced" conversions.

Choose Length Wisely: ≤3m: 24-28AWG; ≥10m: 20-22AWG + balanced transmission.

Upgrade Shielding as Needed: Dual shielding for noisy environments; single shielding for quiet spaces.

Balance Budget and Material: Prioritize OCC + gold contacts for pro use; high-purity OFC for budget setups, avoiding CCA.

Conclusion

Audio jumper parameters focus on "signal fidelity, interference resistance, durability, and scenario compatibility." From conductors to shielding, interfaces to environmental resilience, each parameter impacts sound quality and reliability. Understanding these parameters enables informed choices (e.g., high-fidelity for studios, ruggedness for stages). As audio technology advances (e.g., DSD, Hi-Res), jumpers will evolve with lower loss, better shielding, and broader frequency ranges, remaining foundational to high-quality audio systems.
