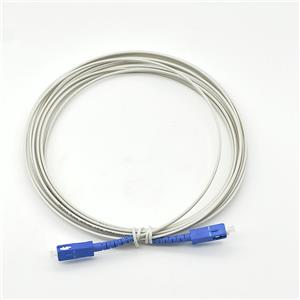

Single-mode fiber optic patch cords multimode fiber optic patch cords UV-resistant fiber optic patch cords
Wiring mode adaptability must consider the installation environment. Aerial wiring can use self-supporting jumpers, pipeline wiring uses non-armored jumpers, indoor ceiling wiring uses flame-retardant jumpers, and industrial environments use armored oil-proof jumpers. Improper wiring methods will cause damage or performance degradation of the jumper. For example, oil stains in industrial environments may corrode ordinary sheaths, so oil-resistant materials (such as nitrile rubber) must be used.
Optical Performance Parameters: The Core Determining Signal Transmission Quality
Optical parameters are the basic indicators for measuring the performance of optical fiber jumpers, directly related to the loss, reflection, and stability of optical signals during transmission, and are the primary criteria for evaluating whether a jumper can meet communication requirements.
Insertion Loss refers to the power attenuation value of an optical signal when passing through a jumper, measured in decibels (dB). Its magnitude is jointly determined by factors such as fiber alignment accuracy, core matching degree, and end-face smoothness. High-quality optical fiber jumpers can minimize this loss. For single-mode fiber jumpers with UPC or APC end-face processing, the insertion loss is usually required to be ≤0.3dB, and some high-precision products can be controlled below 0.1dB. Due to the larger core diameter of multi-mode fiber jumpers, the insertion loss requirement is more stringent, and the insertion loss of PC end-face types needs to be ≤0.2dB. In practical applications, every 0.1dB reduction in insertion loss can extend the optical signal transmission distance by approximately 5 kilometers, which is why long-distance communication systems have extremely high requirements for insertion loss.
Return Loss reflects the degree of reflection of optical signals at the connection point. A higher value indicates less reflected light, resulting in less interference with the light source and other optical devices. The basic requirement for return loss of single-mode fiber jumpers is ≥30dB. In high-performance scenarios, UPC end-faces need to reach ≥50dB, and APC end-faces need to reach ≥65dB. The APC end-face, through an 8° tilt design, can guide reflected light to the cladding rather than the light source direction, thus becoming the first choice in systems sensitive to reflection such as CATV and satellite communications. Insufficient return loss can cause signal superposition interference and, in severe cases, may lead to damage to light source devices.
Polarization Dependent Loss (PDL) describes the difference in attenuation of the jumper for optical signals of different polarization states. The smaller the value, the better the consistency of signal transmission. In high-speed (10Gbps and above) communication systems, PDL must be strictly controlled at ≤0.3dB; otherwise, it will cause signal jitter and an increase in bit error rate. This parameter is particularly critical in coherent optical communication and polarization multiplexing systems, directly affecting the transmission capacity and distance of the system.
Bandwidth is a unique parameter of multi-mode fiber jumpers, measured in MHz·km, representing the ability of the fiber to transmit high-frequency signals. The bandwidth of different types of multi-mode fibers varies significantly: OM1 fiber has a bandwidth of approximately 200MHz·km at 850nm wavelength, suitable for short-distance transmission below 100Mbps; OM2 fiber bandwidth is increased to 500MHz·km, which can support 1Gbps transmission; OM3 and OM4 fibers, by optimizing the core refractive index distribution, have bandwidths of 2000MHz·km and 4700MHz·km respectively at 850nm, and can meet the high-speed requirements of 10Gbps or even 40Gbps. Insufficient bandwidth will cause signal pulse broadening, limiting transmission rate and distance.
The operating wavelength determines the applicable scenarios of the optical fiber jumper. Single-mode fiber jumpers mainly work in the 1310nm and 1550nm windows. These two wavelengths have low attenuation (approximately 0.35dB/km and 0.2dB/km respectively) and are suitable for long-distance transmission; multi-mode fibers focus on 850nm and 1300nm wavelengths. The 850nm wavelength becomes the first choice in data centers due to the low cost of devices, and the 1300nm wavelength has smaller attenuation and can support slightly longer distance transmission. Special-purpose optical fiber jumpers, such as ultraviolet transmission jumpers, can cover a wavelength range of 350-1200nm, meeting the customization needs of medical, spectral analysis, and other fields.
Mechanical Structure Parameters: The Key to Ensuring Connection Reliability
Mechanical parameters determine the physical connection characteristics and installation adaptability of optical fiber jumpers, directly affecting the deployment efficiency and long-term stability of the system.
The choice of connector type needs to be adapted to the application scenario: FC connectors use metal screw fastening, have excellent anti-vibration performance, and are commonly used in outdoor ODF racks and long-distance communications; SC type has a rectangular plug-in design, which is easy to operate and widely used in router, switch, and other equipment ends; LC type is only half the size of SC, adopts an RJ45-like latch structure, and has become the standard interface for miniaturized modules such as SFP and SFP+, significantly improving the port density of high-density distribution frames; ST type has a circular bayonet design, which was widely used in early local area networks and is gradually replaced by LC and SC. The interchangeability of different connectors needs to be controlled through strict dimensional tolerances to ensure compatibility between products from different manufacturers.
The processing accuracy of the end-face form directly affects optical performance. The PC (Physical Contact) end-face is designed as a spherical surface to achieve physical contact of the optical fiber; the UPC end-face has higher surface finish through more precise polishing technology, and its insertion loss and return loss performance are better than PC; the APC end-face adds an 8° tilt angle on the basis of UPC, combined with special polishing technology, to achieve optimal return loss performance. The concentricity error of end-face processing must be controlled at ≤5μm, and the radius of curvature must comply with specifications (single-mode UPC is usually 20-50mm), otherwise, the insertion loss will increase sharply.
The number of fiber cores is selected according to transmission requirements. Single-core jumpers are used for unidirectional transmission or bidirectional BIDI module connection; dual-core jumpers are the most common configuration for bidirectional communication; multi-core jumpers (4-core, 8-core, 12-core, etc.) are suitable for parallel transmission systems, such as parallel optical module connections in data centers. Multi-core jumpers ensure consistency between cores through precise cable stranding technology, avoiding performance differences caused by uneven force. In high-density applications, MPO/MTP multi-core connectors can achieve fast connection of 12 cores, 24 cores, or even 144 cores, greatly improving wiring efficiency.
Sheath material and outer diameter affect the environmental adaptability and installation convenience of the jumper. PVC sheath has low cost but releases toxic gases when burned, suitable for general indoor environments; LSZH (Low Smoke Zero Halogen) sheath produces little smoke and no halogen release when burned, and is a mandatory requirement for personnel-intensive places such as machine rooms and subways; ETFE sheath has high and low temperature resistance and chemical corrosion resistance, suitable for industrial environments. Jumper outer diameters are usually 0.9mm, 2.0mm, and 3.0mm: 0.9mm ultra-fine jumpers are suitable for high-density wiring, saving space; 2.0mm and 3.0mm jumpers have higher mechanical strength, better tensile and bending resistance, and are suitable for equipment room trunk lines and outdoor short-distance connections.
Tensile strength ensures the mechanical safety of the jumper during installation and use. Conventional jumpers need to withstand a tensile force of ≥100N (except for Φ0.9mm jumpers), and some enhanced products can reach 15Kgf (about 147N). Tensile performance is achieved through cable structure design, such as using aramid yarn reinforcement to wrap the optical fiber, which protects the core from stretching under external force. If the tension exceeds the limit during installation, it will cause micro-bending or even breaking of the optical fiber, resulting in permanent loss increase.
Bending performance determines the wiring ability of the jumper in narrow spaces, and the minimum bending radius is a key indicator. For static bending, Φ3.0mm jumpers usually require ≥30mm, and dynamic bending (such as frequent movement scenarios) requires ≥60mm; 0.9mm ultra-fine jumpers have better bending performance, with a static bending radius as low as 5mm, meeting the complex wiring needs in high-density cabinets. Excessively small bending radius will cause macro-bending loss, leading to a sharp increase in signal attenuation, which must be strictly avoided in wiring construction.
Repeatability and interchangeability ensure the maintainability of the system. After 1000 insertions and extractions, the insertion loss variation of the jumper should be ≤0.2dB, and the docking loss difference between products from different manufacturers should also be ≤0.2dB. This requires that the dimensional tolerance of the connector is controlled at the micron level, the pin diameter error is ≤0.5μm, and the end-face height error is ≤1μm. Good interchangeability enables system upgrades and component replacement without recalibration, reducing operation and maintenance costs.
Environmental Adaptability Parameters: Ensuring Stability in Complex Scenarios
Environmental parameters characterize the performance stability of optical fiber jumpers under different working conditions and are important considerations for extreme environment applications.
The operating temperature range directly determines the applicable regions and scenarios of the jumper. Conventional jumpers can work normally at -40℃ to +75℃, and wide-temperature products can be extended to -55℃ to +85℃, meeting the needs of outdoor applications in frigid regions and industrial high-temperature environments. Temperature changes will cause thermal expansion and contraction of cable materials, which may cause micro-bending loss of optical fibers. High-quality jumpers can control the insertion loss change under temperature cycling to ≤0.2dB through material matching design (such as a combination of sheaths and reinforcements with different expansion coefficients).
Humidity resistance ensures the reliability of the jumper in humid environments. Under conditions of +40℃ and 90-95% RH, after 240 hours of testing, the insertion loss variation should be ≤0.2dB. High humidity environments may cause corrosion of connector metal parts and sheath aging. Therefore, in scenarios such as underground pipe corridors and humid areas in the south, connectors with gold plating (≥50μin) on the surface and hydrolysis-resistant sheath materials should be selected. Long-term excessive humidity will cause insertion loss drift and shorten the service life of the jumper.
Anti-vibration and impact performance ensure the stability of the jumper in dynamic environments. Vibration testing requires that after vibration with an amplitude of 0.75mm (or acceleration of 10G) in the frequency range of 10-500Hz, the insertion loss change is ≤0.1dB; impact testing requires that the performance does not change significantly after a 1.8-meter free fall (or 15G acceleration impact). In scenarios with frequent vibrations such as rail transit and industrial control, connectors with anti-loose structures and armored sheaths should be used to prevent connection loosening due to vibration.
Flame retardant performance is selected according to the fire protection requirements of the installation environment. OFNP (Optical Fiber Non-conductive Plenum) grade jumpers are suitable for air circulation areas such as air conditioning and ventilation ducts, with excellent flame retardant and low smoke characteristics; OFNR (Optical Fiber Non-conductive Riser) grade is suitable for vertical shaft wiring; CM (General Cable) grade is used for general indoor environments. Flame retardant performance is verified through standard tests such as UL94 and IEC60332 to ensure that jumpers do not support combustion, have low smoke density, and low toxicity in case of fire, buying time for personnel evacuation and equipment protection.
Weather resistance is a key indicator for outdoor jumpers, which need to withstand ultraviolet radiation, wind and rain erosion, and temperature changes. Outdoor jumpers usually use black PE sheaths to resist ultraviolet aging, prevent rodent bites and mechanical damage through armor layers (such as corrugated steel armor), and connectors adopt waterproof sealing design (IP68 protection level) to ensure long-term stable operation in field environments. Insufficient weather resistance will lead to sheath cracking and fiber exposure, causing system failures.
Material and Process Parameters: The Foundation for Determining Product Quality
Material and process parameters are the inherent guarantees of optical fiber jumper performance, directly affecting the consistency and service life of products.
The quality of the optical fiber itself is the basis of performance. The mode field diameter of single-mode fiber (9/125μm) must be controlled at 9.2±0.4μm (1310nm), the core diameter deviation of multi-mode fiber (50/125μm) must be ≤±3μm, and the refractive index distribution must comply with design specifications. The attenuation coefficient of the optical fiber should be ≤0.36dB/km at 1310nm and ≤0.22dB/km at 1550nm to ensure the lowest inherent loss of the jumper itself. The use of high-quality optical fiber preforms and advanced wire drawing technology can reduce impurities and defects in the optical fiber and improve transmission performance.
The connector pin body is usually made of zirconia ceramic material, which has high hardness (HRC≥85) and good wear resistance, ensuring a plug-in life of ≥1000 times. The concentricity error of the pin must be ≤1μm, and the end-face polishing roughness must be ≤0.02μm, achieving physical contact through precision grinding technology. Metal parts (such as flanges and tail sleeves) need to be made of brass gold plating or stainless steel to prevent corrosion and ensure conductivity (for connectors with metal shells).
The cable stranding process affects the mechanical properties of the jumper. The optical fiber must be tightly wrapped by the tight buffer layer (usually PVC or Hytrel), the buffer layer must distribute stress evenly, and the reinforcements (aramid yarn or steel wire) must be arranged symmetrically to avoid uneven stress on the jumper. Tension control during stranding is crucial; excessive tension will cause micro-bending loss of the optical fiber, and insufficient tension will cause loose structure. High-quality jumpers ensure stable stranding quality through online tension monitoring and length compensation technology.
The connector assembly process determines the final performance. The optical fiber cutting length error must be ≤0.1mm, and the cutting angle must be ≤0.5°, otherwise, it will cause docking offset; the bonding process must use low-shrinkage epoxy resin, which has no bubbles after curing, avoiding micro-bending of the optical fiber caused by stress; the grinding process must go through multiple processes such as rough grinding, fine grinding, and polishing to ensure that the end-face geometric parameters (radius of curvature, vertex offset, fiber 凹陷，etc.) meet the standards. Automated assembly production lines can achieve precise control of process parameters, and product consistency is much higher than manual assembly.
Identification and traceability are guarantees for quality control. Each jumper must be clearly marked with length, type, number of cores, model, and other information, which is achieved through laser marking or permanent printing for erasure resistance. High-end products will also have QR codes attached, recording production batches, test data, and other information to achieve full life cycle traceability. A perfect identification system facilitates engineering construction and later maintenance and is also the basis for quality liability traceability.
Application Adaptability Parameters: The Key to Achieving Scenario-Based Matching
Application adaptability parameters ensure that optical fiber jumpers accurately match the specific scenario requirements and are an important part of system design.
The length selection must be determined according to the actual wiring distance. Common standard lengths are 0.5m, 1m, 2m, 3m, 5m, 10m, etc., and can be customized to a maximum of several kilometers. Too short a length will cause tight wiring, and too long will increase signal loss and wiring costs, and may introduce additional bending loss. 0.5-2m jumpers are commonly used for internal connections in data center cabinets, 3-10m jumpers are used for connections between cabinets, and 50-100m jumpers may be used for short-distance connections between buildings.
Transmission rate compatibility must match the system bandwidth. OM2 or OM3 multi-mode jumpers can be used for systems below 10Gbps, OM3 or OM4 multi-mode jumpers are required for 25Gbps/40Gbps systems, and single-mode jumpers or OM5 wide-band multi-mode jumpers are recommended for 100Gbps and above systems. Mismatched rates will cause the system to fail to reach the designed bandwidth and cause bottlenecks. Single-mode jumpers support transmission from 1Gbps to 400Gbps or even higher rates and are the mainstream choice for future high-speed communications.
Interface compatibility must match the equipment port. SFP modules are usually paired with LC jumpers, GBIC modules with SC jumpers, large OLT equipment often uses FC jumpers, and CATV equipment mostly uses FC or SC jumpers with APC end-faces. Mismatched interfaces will cause failure to connect or performance degradation, so the equipment port type must be clarified during selection. Adapters (flanges) can realize conversion between different interface types but will introduce additional insertion loss of about 0.2dB.
Wiring mode adaptability must consider the installation environment. Aerial wiring can use self-supporting jumpers, pipeline wiring uses non-armored jumpers, indoor ceiling wiring uses flame-retardant jumpers, and industrial environments use armored oil-proof jumpers. Improper wiring methods will cause damage or performance degradation of the jumper. For example, oil stains in industrial environments may corrode ordinary sheaths, so oil-resistant materials (such as nitrile rubber) must be used.
Certification and standard compliance ensure product quality. Mainstream certifications include international standards such as TIA/EIA, IEC, ISO, and regional certifications such as UL and CE. Jumpers that meet the standards are guaranteed in terms of size, performance, safety, etc., and can avoid system failures caused by compatibility issues. In government procurement and large-scale projects, certification compliance is usually a basic requirement for bidding.
In summary, the parameter characteristics of optical fiber jumpers cover multiple dimensions such as optical, mechanical, environmental, material, process, and application adaptability, and each parameter is interrelated and mutually influential. In actual selection, it is necessary to comprehensively consider various parameter indicators according to specific needs such as transmission distance, rate, environmental conditions, and equipment interfaces to ensure the stable and efficient operation of the optical fiber communication system. With the rapid development of 5G, data centers, the Internet of Things, and other fields, the parameter requirements for optical fiber jumpers will continue to improve, promoting products to continuously evolve towards low loss, high density, high reliability, and intelligence.
