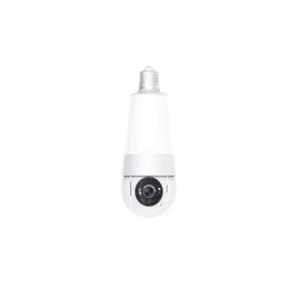

Smart Bulb Camera with Human Detection and Full-Angle 360° Horizontal and 90° Vertical
In an era where security monitoring devices are increasingly leaning toward "concealment" and "multi-functionality," the Bulb Camera, with its unique design of "disguising as an everyday light fixture," has become an "invisible guardian" for homes, small shops, and other scenarios. It integrates monitoring and lighting functions, and can be used by installing it in an ordinary lamp holder. It does not damage the decoration style and can achieve 24-hour seamless monitoring. The following is an in-depth analysis from the dimensions of core parameters, functional features, and applicable scenarios to help you fully understand the technical details and practical value of such products.
I. Detailed Explanation of Core Parameters
The performance and user experience of a bulb camera are jointly determined by its hardware parameters and functional design. The key parameters are disassembled from the aspects of appearance, imaging, lighting, and intelligent functions as follows:
(1) Appearance and Installation Parameters
As a monitoring device "disguised as a light bulb," appearance and installation compatibility are its core competitiveness, directly affecting concealment and scope of application.
Appearance Size and Weight
Mainstream products are approximately 10-15cm in height, 5-8cm in diameter, and 100-200g in weight, which are close to ordinary LED bulbs (e.g., a common E27 screw bulb has a diameter of about 6cm and a height of 12cm). After installation, it is difficult to distinguish from a monitoring device in appearance, with extremely strong concealment. The material mostly adopts flame-retardant ABS plastic or PC material, which is high-temperature resistant (operating temperature -10℃-50℃), anti-aging, and meets lamp safety standards (certified by CE and ROHS), avoiding shell deformation or overheating due to long-term use.
Lamp Holder Compatibility
It supports mainstream lamp holder interfaces to meet the electricity standards in different regions:
E27 screw base: A globally interface (China, Europe, most regions of Asia), with a screw diameter of 27mm. It is installed by rotating clockwise and is compatible with most household chandeliers, wall lamps, and table lamp holders.
B22 bayonet base: Common in the UK, Australia, and other regions, with a bayonet diameter of 22mm. It is fixed by a buckle and can be installed by aligning with the slot, pressing, and rotating.
Some high-end models support "E27/B22 conversion adapters," allowing users to flexibly switch according to their lamp holder types, improving compatibility.
Installation Method
No wiring or professional tools are required, and the installation steps are the same as replacing a light bulb: after power failure, remove the original light bulb, screw the bulb camera into the lamp holder, and it can be used after power is turned on. Some models have a built-in "360° rotating base," which can manually adjust the lens angle (horizontal rotation 0°-355°, vertical rotation 0°-90°), covering different monitoring directions such as ceilings and walls, solving the problem of fixed-angle blind spots.
(2) Imaging and Lens Parameters
Imaging quality is the core of monitoring equipment. Although bulb cameras are small in size, their hardware configuration is not inferior to traditional monitoring. The key parameters are analyzed as follows:
Resolution and Image Quality
Mainstream models cover resolutions from 1080P (2 million pixels) to 4K (8 million pixels), meeting the needs of different scenarios:
1080P (1920×1080): Standard for basic models, with clear daytime images. It can identify human face contours within 5 meters and object movements within 10 meters, suitable for monitoring small areas such as bedrooms and living rooms.
2K (2560×1440): Featured in mid-to-high-end models, with 50% more pixels than 1080P and richer details. It can clearly see textures within 3 meters (such as text on book covers) and facial features within 8 meters, suitable for scenarios requiring accurate identification such as doorways and shop counters.
4K (3840×2160): Equipped in flagship models, with 4 times the pixels of 1080P, supporting digital zoom (clear after zooming in on the image). It is suitable for large-area monitoring (such as living rooms and small offices) but increases storage usage (1 hour of 4K video occupies about 8GB of space).
In terms of image quality optimization technology, most models support H.265 encoding (50% higher compression rate than H.264, doubling the video duration under the same storage) and WDR wide dynamic range (retaining both bright and dark details in strong light/backlight environments, such as avoiding overexposure outside the window and underexposure indoors when monitoring near windows), ensuring clear images in complex light scenarios.
Lens Parameters
Focal Length and Wide Angle: Fixed focal length design, with a focal length of 2.8-4mm, corresponding to a wide angle of 120°-160°:
2.8mm focal length (140°-160° ultra-wide angle): Wide coverage (e.g., a 10㎡ bedroom can be monitored in full screen), suitable for dead-angle-free monitoring in small spaces, but details at a distance (more than 5 meters) are slightly weak.
4mm focal length (120° wide angle): Focuses on longer distances, with clearer details of objects more than 5 meters away. It is suitable for medium and large areas such as living rooms and shops, balancing coverage and detail clarity.
Aperture and Sensitivity: The aperture is F1.6-F2.0 (large aperture design), and the light intake is 30% higher than that of ordinary monitoring lenses, resulting in fewer noise points in images in low-light environments such as cloudy days and evenings. Equipped with a 1/2.7-inch CMOS sensor, it has high photosensitive sensitivity and can capture clear images at night without fill light.
Night Vision Capability
It supports infrared night vision + full-color night vision dual modes, adapting to different light environments:
Infrared Night Vision: Built-in 6-12 infrared LED lights (wavelength 850nm), with a night vision distance of 10-20 meters. The image is black and white, and the infrared lights are invisible when turned on (no red light leakage), with strong concealment, suitable for monitoring when no one is around at night (such as anti-theft).
Full-Color Night Vision: Two implementation schemes:
White light fill: Equipped with 2-4 white light LEDs (shared with lighting LEDs), which automatically turn on when monitoring is triggered at night, with a night vision distance of 5-10 meters. The image is realistically colored, but the white light may wake people up during sleep (suitable for non-rest areas such as living rooms and shops).
Starlight-level night vision: Using a large aperture + high-sensitivity sensor, it can present color images under weak light sources such as moonlight and street lights (0.01lux ultra-low illumination) without fill light, suitable for bedrooms, baby rooms, and other scenes requiring quiet monitoring.
(3) Lighting and Power Consumption Parameters
The core advantage of bulb cameras is "integration of lighting and monitoring," and lighting parameters directly affect their practicality as lamps.
Lighting Brightness and Color Temperature
Brightness: 300-1200 lumens (lm) adjustable, equivalent to the brightness of 20-100W traditional incandescent bulbs:
300-500 lumens: Suitable for bedrooms and corridors (soft and not dazzling).
800-1200 lumens: Suitable for living rooms and shops (sufficient brightness to meet daily activities).
Color Temperature: 3000K (warm white light) -6500K (cool white light) adjustable:
3000K warm white light: The light is yellowish, creating a warm atmosphere, suitable for bedrooms and restaurants.
6500K cool white light: The light is whitish, with higher brightness, suitable for study rooms and kitchens (improving work efficiency).
It supports the "brightness/color temperature memory function," which automatically restores the previous settings when turned on next time, eliminating the need for repeated adjustments.
Lighting Modes
It takes into account lighting and energy-saving needs, providing multiple working modes:
Always-on Mode: Consistent with ordinary light bulbs, it illuminates continuously, suitable for daily use.
Human Body Induction Mode: Built-in PIR infrared sensor (induction distance 5-8 meters, angle 120°), which automatically turns on when someone passes by (lighting time 10-60 seconds adjustable) and automatically turns off when no one is around, suitable for corridors, bathrooms, and other scenes, saving energy (70% more energy-saving than always-on mode).
Monitoring Priority Mode: Turn off the lighting function and only operate as a monitoring device, suitable for concealed monitoring at night.
Power Consumption and Power Supply
It adopts AC 100-240V wide voltage design (globally ), with low power consumption:
When only monitoring: 5-8W (equivalent to the charging power of a mobile phone).
When both lighting and monitoring are turned on: 10-25W (adjusted according to brightness, 1200 lumens is about 25W). The long-term use electricity cost is low (calculated by using 8 hours a day, the monthly electricity fee is about 1-3 yuan).
There is no built-in battery, and it relies on the lamp holder for power supply. Some models support "UPS backup power supply" (need to be purchased separately), which can last 1-2 hours after power failure, ensuring monitoring during key periods.
(4) Intelligent Function Parameters
The "intelligence" of bulb cameras is reflected in functions such as active defense and accurate alarm, and core parameters directly affect user experience:
Motion Detection and Alarm
Dual Detection Technology: PIR infrared sensor (detecting human body heat) + AI visual algorithm (identifying moving objects), reducing false alarms:
Filtering non-human activities: Such as curtain shaking, pet jumping (pets under 10kg), mosquito flying, etc., the false alarm rate is 80% lower than that of ordinary monitoring.
Custom detection area: Frame the "warning area" (such as doorway, window sill) in the APP, and the alarm is triggered only when the target enters the specified area, avoiding invalid reminders.
Alarm Response: Push alarm messages to the mobile APP within 1-3 seconds after triggering (including real-time captured pictures/10-second short videos), supporting local sound and light alarms (100dB siren, optional to turn on), deterring intruders.
Two-Way Voice and Remote Interaction
Built-in omnidirectional microphone (pickup distance 5-8 meters, supporting noise reduction) and 3W speaker (volume adjustable), realizing "real-time intercom" through mobile APP:
Family scenarios: Can remotely comfort crying babies ("Don't cry, baby, mom will be back soon") and remind the elderly to take medicine.
Shop scenarios: When suspicious persons are found, remotely shout ("There is monitoring here, please leave") without on-site duty.
The voice delay is ≤0.5 seconds (depending on the network), and the call is clear without noise, comparable to WeChat voice quality.
Timed Tasks and Linkage
Timed Lighting: Set the lighting time period (such as automatically turning on the light from 18:00 to 22:00) to simulate someone at home and prevent theft.
Timed Monitoring: Turn on the "away mode" (such as 9:00-18:00) to automatically enhance detection sensitivity; "home mode" (such as 18:00-9:00) to turn off alarm pushes to avoid disturbing rest.
Some high-end models support "smart home linkage" (accessing Alexa, Google Assistant, or Mijia APP), which can be controlled by voice commands ("Alexa, turn on the living room monitoring") or linked with smart door locks (automatically turning on strong light alarm when the door lock is pried).
(5) Storage and Network Parameters
Storage and network determine data security and access convenience, and bulb cameras provide multiple solutions to meet different needs:
Storage Methods
Local Storage: Supports Micro SD card (TF card), with a maximum support of 32GB-256GB:
Under 1080P image quality, 128GB can store about 7-10 days of cyclic video (automatically overwriting the earliest video when full).
Supports "event recording" (only recording when an alarm is triggered), saving storage space (128GB can store more than 30 days of event videos).
Cloud Storage: Provides free/paid cloud services (7-day free cyclic storage, monthly payment of 5-15 yuan can be upgraded to 30 days), with video encrypted transmission (bank-level AES-256 encryption) to prevent data leakage:
Advantage: Even if the device is damaged or stolen, cloud videos can still be viewed, facilitating police forensics.
Privacy protection: Supports "cloud video encryption," which can only be viewed by entering a password, avoiding others stealing accounts to view.
Network Connection
It supports Wi-Fi 802.11 b/g/n (2.4GHz frequency band), and some models are compatible with 5GHz frequency band (faster transmission speed, suitable for 4K videos):
Connection steps: After power on, scan the device QR code through the APP, enter the Wi-Fi password to complete pairing (no network cable required), adapting to home broadband within 200M.
Network stability: Built-in "anti-interference chip" to reduce interference from Wi-Fi signals in the same frequency band (such as routers, microwave ovens), ensuring smooth transmission of high-definition videos (1080P image quality requires 2-4Mbps bandwidth).
II. Analysis of Core Functional Features
The competitiveness of bulb cameras lies not only in parameters but also in "scenario-based experience." The following are their core advantages compared with traditional monitoring:
(1) Strong Concealment, Dead-Angle-Free Concealed Monitoring
Traditional monitoring devices (such as gun cameras and dome cameras) have an abrupt appearance and are easy to be detected and destroyed; while bulb cameras are disguised as daily lamps, integrated into the home environment after installation (such as living room chandeliers, bedroom wall lamps), making it difficult for intruders to find, thus continuously recording the criminal process. For example:
Rental house scenarios: Can secretly monitor whether intermediaries enter without permission (no need to inform, protecting the tenant's privacy).
Shop scenarios: Installed in ceiling lamp holders to monitor cash registers and shelves, avoiding employees avoiding monitoring after being aware of it.
Its concealment is also reflected in "no red light in night vision" (infrared lights are invisible when working), which will not expose the position during night monitoring, suitable for anti-theft scenarios.
(2) Zero-Threshold Installation, No Need to Renovate Decoration
Traditional monitoring requires drilling, wiring, and connecting power, damaging walls/ceilings (especially rental houses and old houses); bulb cameras use existing lamp holders for power supply, with only 3 installation steps: power off → screw into the lamp holder → power on, which can be completed in 5 minutes, and women can operate independently.
Rental users: Can be taken away when moving out without affecting the original state of the house, avoiding the landlord deducting the deposit.
Old house users: No need to ask electricians to wire, saving installation costs (traditional monitoring on-site installation fee is about 100-300 yuan).
It supports 360° rotating lens, solving the problem of "incomplete fixed-angle monitoring." For example, installed in the living room chandelier, the lens can be rotated to monitor the sofa area, doorway, and balcony respectively, realizing "one lamp covers the whole house."
(3) Integration of Lighting and Monitoring, One Device with Multiple Uses to Save Space
The traditional scheme needs to install "light bulb + monitoring" at the same time, occupying space and having high cost (ordinary LED bulb 50 yuan + entry-level monitoring 200 yuan = 250 yuan); bulb cameras cost 150-300 yuan, with both functions, and higher cost performance:
Family scenarios: Install one in the bedroom to meet the needs of night lighting (human body induction lighting) and monitor the baby room (remotely care for the baby).
Shop scenarios: Installed in ceiling lamp holders, the lighting function meets the needs of customers/employees during the day, and automatically switches to monitoring mode at night, saving equipment procurement costs.
(4) Intelligent Interaction, More Convenient Remote Management
Full-function control through mobile APP (supporting iOS/Android) breaks the time/space limit:
Real-time viewing: Whether in the company or on a business trip, you can view the real-time picture at home by opening the APP (supporting 1080P/2K high-definition live broadcast, and you can zoom in on the picture to see details).
Historical playback: You can retrieve SD card/cloud videos at any time (accurate to minutes and seconds), such as checking "who rang the doorbell at 18:00 yesterday."
One-click sharing: Supports multi-device login (such as husband and wife sharing an account), or temporarily authorizes family members (such as letting parents remotely watch their children), and permissions can be revoked at any time.
(5) Safe and Compliant, Balancing Monitoring and Privacy
In response to users' concerns about "privacy leakage," bulb cameras ensure safety through multiple designs:
Physical privacy protection: Supports "lens masking" (one-click to turn off the lens in the APP, and the picture shows "masked"), avoiding others' peeking by mistake.
Data encryption: Video transmission adopts HTTPS protocol, and storage adopts hardware encryption (chip-level encryption, unable to crack SD card data).
Compliance certification: Passes national security product certification (such as China CCC certification), complies with the "Personal Information Protection Law," and prohibits illegal monitoring of others' privacy (it is recommended to use only in your own space).
III. Applicable Scenarios and Purchasing Suggestions
(1) Best Applicable Scenarios
Family Residences
Bedrooms/baby rooms: Monitor the baby's sleep status (full-color night vision does not disturb, two-way voice remote comfort), with human body induction lighting (automatically turns on when getting up at night, no need to grope in the dark).
Living rooms/doorways: Disguised in chandeliers to monitor visitors and couriers, and remotely shout when suspicious persons are found to prevent burglary.
Rental Houses/Short-Term Rental Houses
No need to renovate the decoration, can be taken away when moving out, monitor whether tenants damage items and landlords enter without permission, and retain evidence to avoid disputes.
Small Shops/Offices
Installed in ceiling lamp holders to monitor cash registers (preventing employees from hiding money) and shelves (avoiding theft). The lighting function meets the needs of customers/employees, saving equipment costs.
Elderly People's Homes
Remotely check whether the elderly have fallen (motion detection alarm), remind them to take medicine and chat through two-way voice, balancing safety and companionship.
(2) Purchasing Notes
Priority to 2K Resolution + Starlight Night Vision
1080P is sufficient during the day, but the details are insufficient at night; 2K resolution is still clear when zooming in on the image at night, paired with starlight night vision (no fill light color), suitable for most family scenarios.
Confirm the Lamp Holder Interface
Before purchasing, check the type of your lamp holder (E27/B22) to avoid "buying the wrong interface and being unable to install it." Priority is given to models with conversion adapters (stronger compatibility).
Attach Importance to Storage Security
For privacy-sensitive scenarios (such as bedrooms), choose "local storage only" (SD card) to avoid cloud upload; for scenarios requiring remote forensics such as shops, match with cloud storage (to ensure backup after the device is stolen).
Choose Models Supporting "Human Recognition"
Ordinary motion detection is prone to false alarms (such as pets and fallen leaves), and models with human recognition can filter interference and reduce invalid pushes from mobile APPs.
Summary
Bulb Camera solves the pain points of "troublesome installation and abrupt appearance" of traditional monitoring through its innovative design of "disguised as a light bulb," and improves practicality with "integration of lighting and monitoring." Its core parameters cover 1080P-4K resolution, 120°-160° wide angle, intelligent human recognition, etc. In terms of functions, it realizes concealed monitoring, remote interaction, and timed linkage, suitable for multiple scenarios such as families, shops, and rental houses.
With the upgrading of technology, bulb cameras will develop towards "AI behavior analysis" (such as identifying the elderly falling and children climbing), "low-power battery life" (supporting power-off battery life), and "multi-device linkage" (accessing the whole-house intelligence) in the future, further blurring the boundary between "lighting" and "security" and becoming a core device of smart homes. When choosing, you need to pay attention to resolution, night vision capability, and lamp holder compatibility according to your own scenarios to maximize the value of its "invisible guardian."
